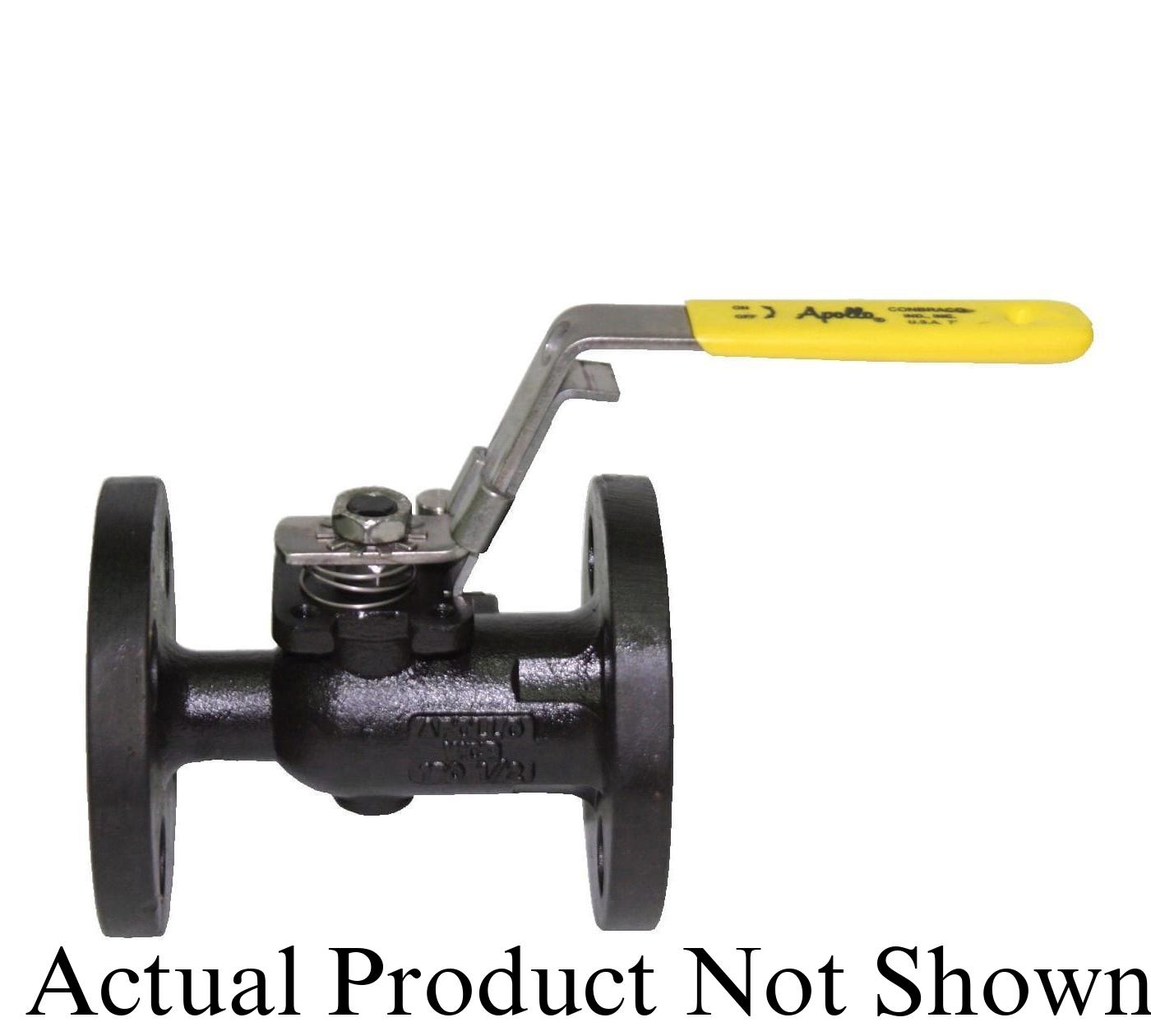

Apollo™ 88A24524 88A-240 Ball Valve, 1 in Nominal, Raised Face Flanged End Style, 150 lb, Wrought Carbon Steel Body, Full Port, Graphite/PTFE Softgoods, Domestic
CBPN:126426
UPC:670750913006
MPN:88A-245-24
Price:
$462.09 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A24524, Ball Valve, Series: 88A-240, 1 in Nominal, Raised Face Flanged End Style, 150 psi SWP Pressure, 150 lb Pressure Class, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 5 in Inlet to Outlet Length, 4.62 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, Graphite/PTFE Softgoods, Domestic
Apollo™ 88A24524 88A-240 Ball Valve, 1 in Nominal, Raised Face Flanged End Style, 150 lb, Wrought Carbon Steel Body, Full Port, Graphite/PTFE Softgoods, Domestic
CBPN:126426
MPN:88A-245-24
UPC:670750913006
Price:
$462.09 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A24524, Ball Valve, Series: 88A-240, 1 in Nominal, Raised Face Flanged End Style, 150 psi SWP Pressure, 150 lb Pressure Class, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 5 in Inlet to Outlet Length, 4.62 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, Graphite/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 7 lbs
Nominal Size: 1 in
End Style: Raised Face Flanged
Pressure Class: 150 lb
Pressure Rating: 150 psi SWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: Graphite/PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 5 in
Manufacturer Name: Apollo Conbraco
Series: 88A-240
Top to Inlet Center: 4.62 in
Trim Material: 316 Stainless Steel/RPTFE
Application: Potable and Non-Potable Applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A216 WCB Body | MSS SP-25/SP-72 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device
- Chevron style adjustable stem seal bolt pattern
- Slot vented ball for thermal expansion
- Rated up to 150 psig saturated steam
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast boss for bleed/drain port
- Vacuum service to 29 in Hg
