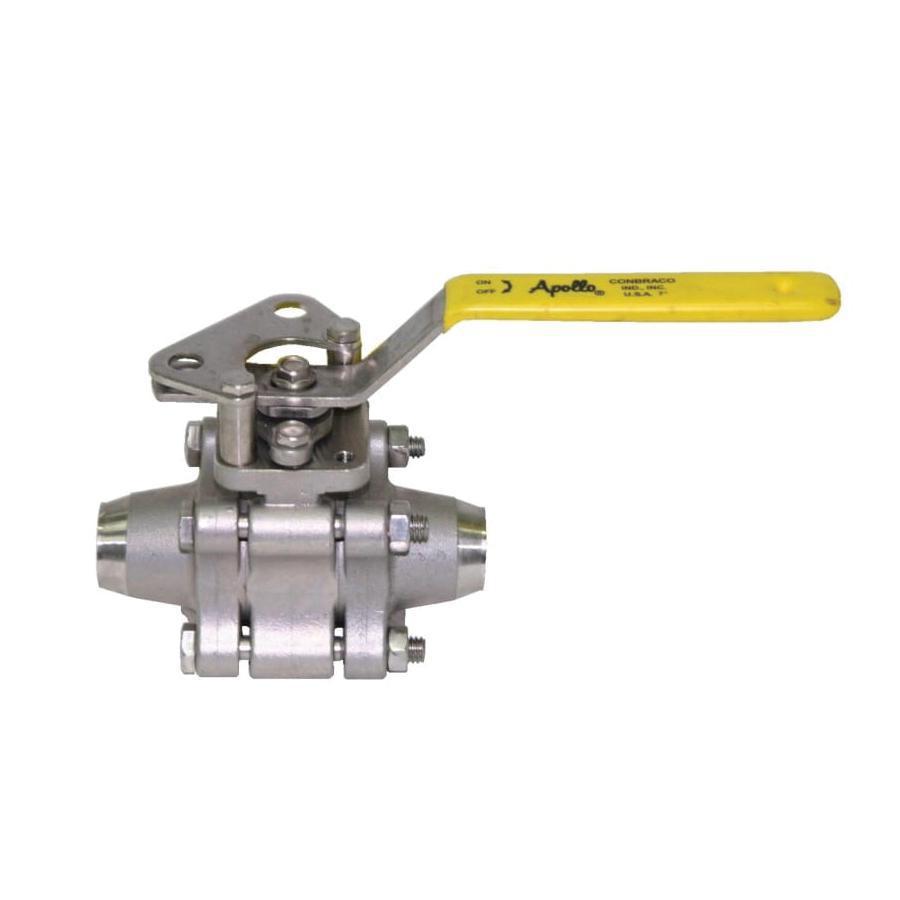

Apollo™ 86B-404-01 86B-400 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:246474
UPC:670750295232
MPN:86B40401
Price:
$564.54 / EA
Prop 65:
Enter in multiples of 6
DESCRIPTION
Apollo™ 86B40401, Ball Valve, 3-Piece, Series: 86B-400, 3/4 in Nominal, Butt Welded End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, 3/4 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and Multi-Seal Seat Trim, PTFE Softgoods, Domestic
Apollo™ 86B-404-01 86B-400 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN:246474
MPN:86B40401
UPC:670750295232
Price:
$564.54 / EA
Prop 65:
Enter in multiples of 6
DESCRIPTION
Apollo™ 86B40401, Ball Valve, 3-Piece, Series: 86B-400, 3/4 in Nominal, Butt Welded End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, 3/4 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and Multi-Seal Seat Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 4 lbs
Nominal Size: 3/4 in
End Style: Butt Welded
Pressure Class: 600 lb
Pressure Rating: 250 psi
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.66 in
Manufacturer Name: Apollo Conbraco
Orifice Size: 3/4 in
Series: 86B-400
Top to Inlet Center: 3.4 in
Trim Material: 316 Stainless Steel Stem and Multi-Seal Seat
Type: 3-Piece
Includes: Enclosed Fastener
Application: Industrial Application
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B16.34/B16.25 | ASTM A276 Ball | ASTM A351 CF8M Body | API 608 | CE Listed | CGA 3.16-M88 (2014) | NACE MR0175 (2000)/MR0103 (2012) | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- Stainless steel trim/stem/spring
