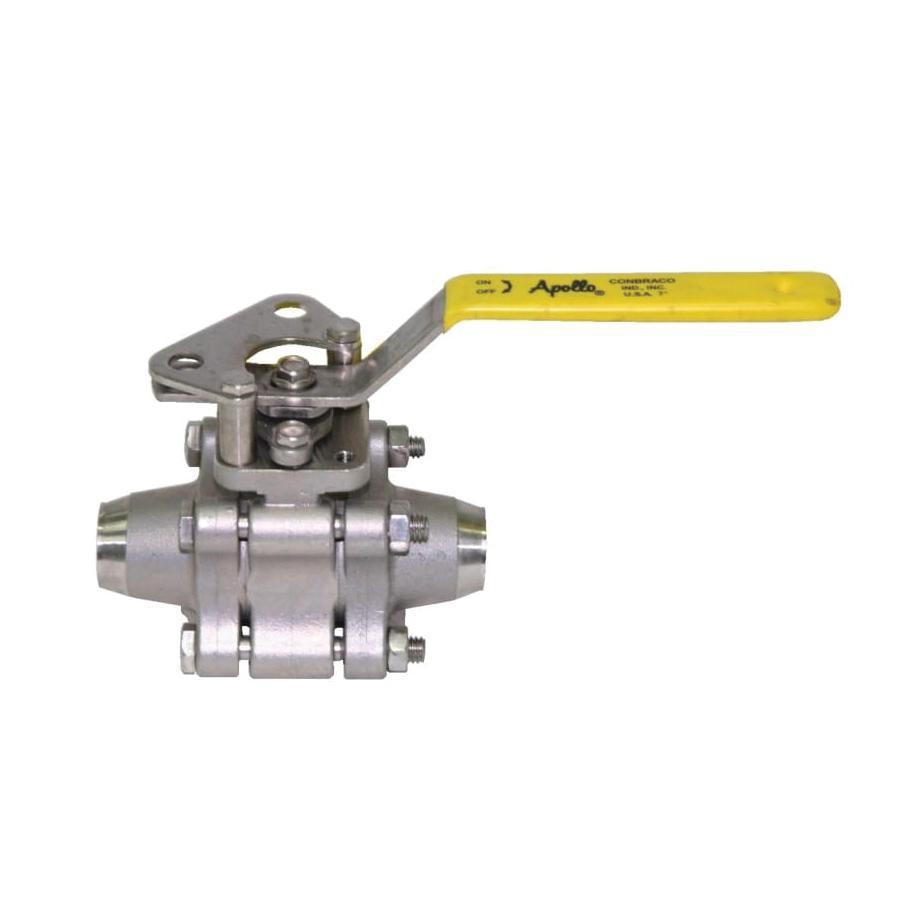

Apollo™ 86A-404-01 86A-400 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, Stainless Steel Body, Full Port, RPTFE/PTFE Softgoods, Domestic
CBPN:207172
UPC:670750088933
MPN:86A-404-01
Price:
$503.90 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A40401, Ball Valve, 3-Piece, Series: 86A-400, 3/4 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 86A-404-01 86A-400 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Butt Weld End Style, Stainless Steel Body, Full Port, RPTFE/PTFE Softgoods, Domestic
CBPN:207172
MPN:86A-404-01
UPC:670750088933
Price:
$503.90 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A40401, Ball Valve, 3-Piece, Series: 86A-400, 3/4 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 4.66 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 3.98 lbs
Nominal Size: 3/4 in
End Style: Butt Welded
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.66 in
Manufacturer Name: Apollo Conbraco
Series: 86A-400
Top to Inlet Center: 3.4 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B16.25 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | MSS SP-25/SP-110 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- SCH 10 butt weld
