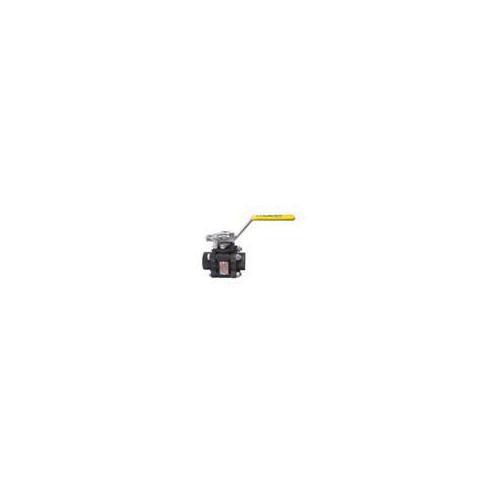

Apollo™ 83A-246-01 83A-200 3-Piece Ball Valve With Enclosed Fasteners, 1-1/4 in Nominal, Socket Weld End Style, Carbon Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 242015
UPC:670750088476
MPN:83A-246-01
Price:
$443.41 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 83A-200, 1-1/4 in Nominal, Socket Weld, 1500 psi CWP, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 4-1/2 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and Multi-Seal Seat Trim, PTFE, Domestic
Apollo™ 83A-246-01 83A-200 3-Piece Ball Valve With Enclosed Fasteners, 1-1/4 in Nominal, Socket Weld End Style, Carbon Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 242015
MPN:83A-246-01
UPC:670750088476
Price:
$443.41 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 83A-200, 1-1/4 in Nominal, Socket Weld, 1500 psi CWP, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 4-1/2 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and Multi-Seal Seat Trim, PTFE, Domestic
Specifications
Brand: Apollo™
Weight: 14.2 lbs
Nominal Size: 1-1/4 in
End Style: Socket Weld
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4-1/2 in
Manufacturer Name: Apollo Conbraco
Series: 83A-200
Top to Inlet Center: 4.7 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body | ASTM A276 Ball/Stem | ASME B16.11 | MSS SP-110/MSS SP-25 | MR0103 (2012) | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 150 psig saturated steam
