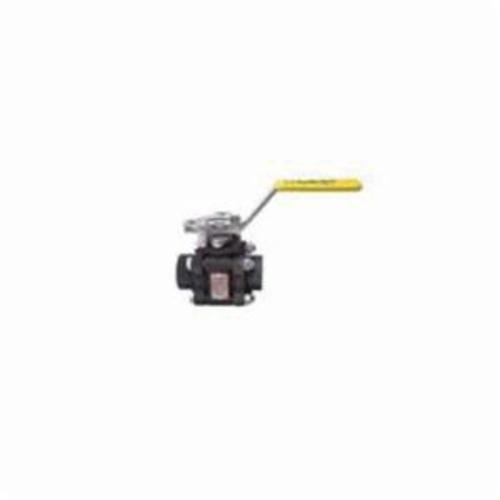

Apollo™ 83A-244-01 83A-200 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Socket Weld End Style, Carbon Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:115819
UPC:670750087974
MPN:83A-244-01
Price:
$261.75 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 83A-200, 3/4 in Nominal, Socket Weld, 1500 psi, Full Port, Media: Gas/Water, 3/4 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 3.68 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Carbon Steel Body, Stainless Steel Stem and PTFE Seat Trim, PTFE/RPTFE, Domestic
Apollo™ 83A-244-01 83A-200 3-Piece Ball Valve With Enclosed Fasteners, 3/4 in Nominal, Socket Weld End Style, Carbon Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:115819
MPN:83A-244-01
UPC:670750087974
Price:
$261.75 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 83A-200, 3/4 in Nominal, Socket Weld, 1500 psi, Full Port, Media: Gas/Water, 3/4 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 3.68 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Carbon Steel Body, Stainless Steel Stem and PTFE Seat Trim, PTFE/RPTFE, Domestic
Specifications
Brand: Apollo™
Weight: 4 lbs
Nominal Size: 3/4 in
End Style: Socket Weld
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 3.68 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 3/4 in
Series: 83A-200
Top to Inlet Center: 3.4 in
Trim Material: PTFE/Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B16.11 | MSS SP-110 | MSS SP-25 | MR0103 (2012) | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in hg
- 150 psig saturated steam
- PTFE packing and RPTFE body gasket
