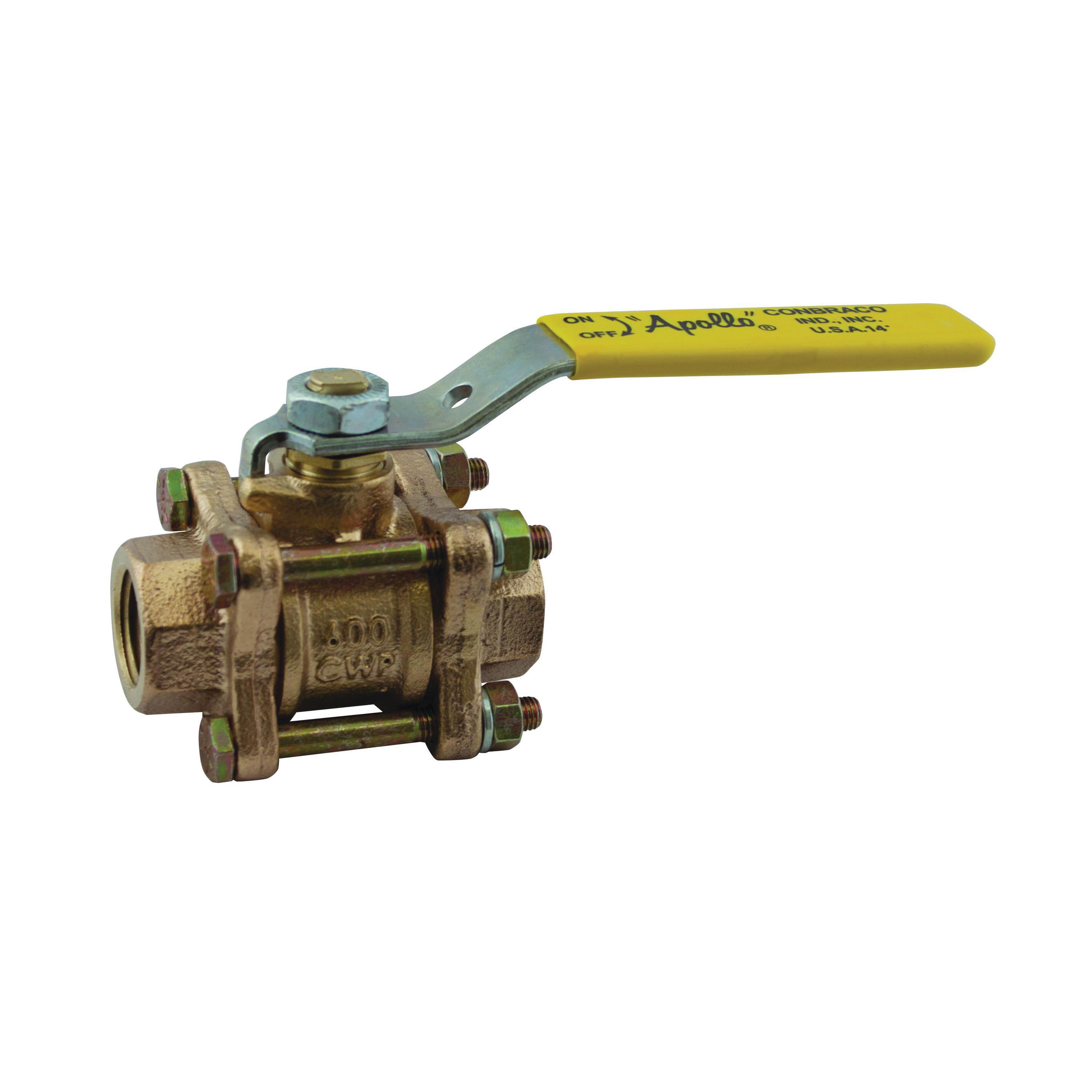

Apollo™ 8214527 82-100 3-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN:166034
UPC:670750725265
MPN:82-145-27
Price:
$274.57 / EA
Prop 65:
DESCRIPTION
Apollo™ 8214527, Ball Valve, 3-Piece, Series: 82-100, 1 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 3.87 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 82-100 series is designed as an in-line serviceable full port bronze ball valve. SAE grade body bolts and RPTFE seals are standard.
Apollo™ 8214527 82-100 3-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN:166034
MPN:82-145-27
UPC:670750725265
Price:
$274.57 / EA
Prop 65:
DESCRIPTION
Apollo™ 8214527, Ball Valve, 3-Piece, Series: 82-100, 1 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 3.87 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 82-100 series is designed as an in-line serviceable full port bronze ball valve. SAE grade body bolts and RPTFE seals are standard.
Specifications
Brand: Apollo™
Weight: 3.23 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: Stainless Steel
Inlet to Outlet Length: 3.87 in
Manufacturer Name: Apollo Conbraco
Series: 82-100
Temperature Rating: 500 deg F
Top to Inlet Center: 2.62 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Type: 3-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM A276 Ball/Stem | CSA B51 | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 27 - Stainless steel latch-lock lever and nut
- Blow-out proof stem
- Vacuum service to 29 in Hg
- 150 psi working steam pressure
