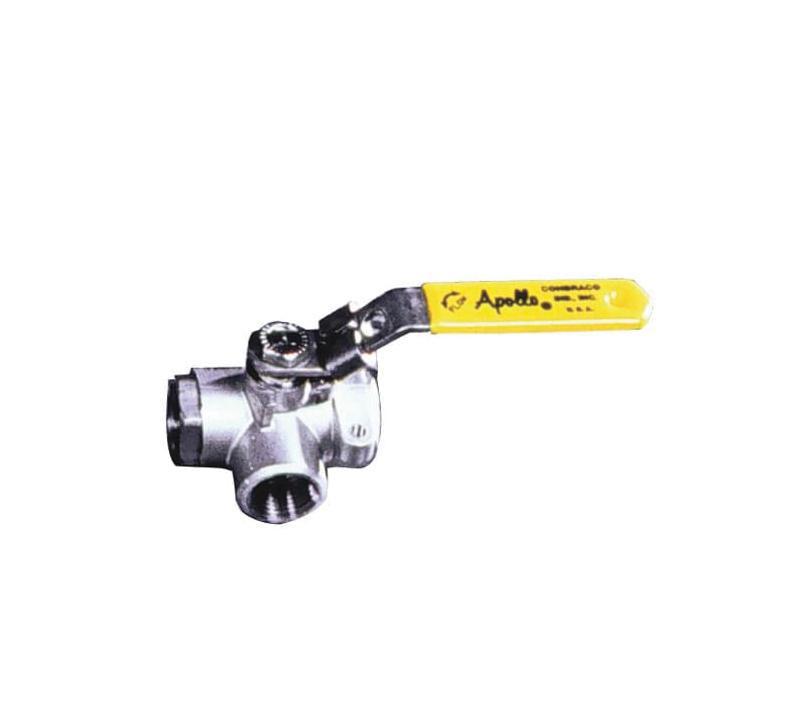

Apollo™ 7660201A 76-600 3-Way Standard Configuration Ball Valve, 3/8 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 110761
UPC:670750854439
MPN:76-602-01-A
Apollo™ 76-602-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 7660201A, Standard Configuration Ball Valve, 3-Way, Series: 76-600, 3/8 in Nominal, FNPT End Style, 800 psi CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.32 in Inlet to Outlet Length, 1.8 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
Apollo™ 7660201A 76-600 3-Way Standard Configuration Ball Valve, 3/8 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 110761
MPN:76-602-01-A
UPC:670750854439
Apollo™ 76-602-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 7660201A, Standard Configuration Ball Valve, 3-Way, Series: 76-600, 3/8 in Nominal, FNPT End Style, 800 psi CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.32 in Inlet to Outlet Length, 1.8 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 0.66 lbs
Nominal Size: 3/8 in
End Style: FNPT
Pressure Rating: 800 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.32 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 76-600
Top to Inlet Center: 1.8 in
Trim Material: 316 Stainless Steel/PTFE
Type: 3-Way Diversion
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 Valve Body/A351 CF8M Retainer | Annex G | MR0103 (2012) | NSF/ASNI 61 | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem design
- Investment cast body
- 304 stainless steel with vinyl lever and grip
- ASTM A276-316 retainer
- ASTM A276-316 gland nut
- MPTFE stem packing and PTFE body seal
