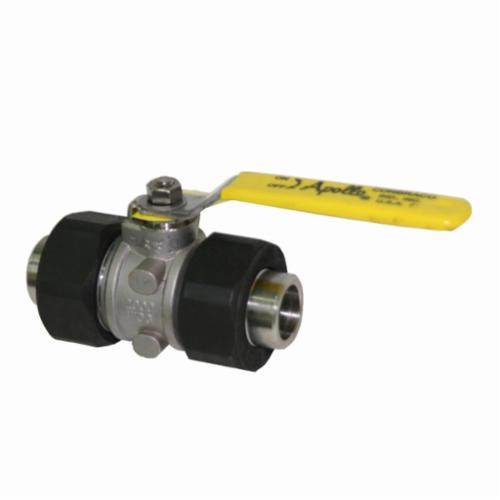

Apollo™ 76-406-27 76-400 Double Union Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN:290655
UPC:670750700811
MPN:76-406-27
Price:
$824.93 / EA
DESCRIPTION
Apollo™ 76-406-27, Double Union Ball Valve, Series: 76-400, 1-1/4 in Nominal, Socket Welded End Style, 1500 psig CWP Pressure, Standard Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 5.32 in Inlet to Outlet Length, 2.97 in Top to Inlet Center, 316 Stainless Steel Stem/RPTFE Seat Trim, RPTFE/MPTFE Softgoods, Domestic
Apollo™ 76-406-27 76-400 Double Union Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN:290655
MPN:76-406-27
UPC:670750700811
Price:
$824.93 / EA
DESCRIPTION
Apollo™ 76-406-27, Double Union Ball Valve, Series: 76-400, 1-1/4 in Nominal, Socket Welded End Style, 1500 psig CWP Pressure, Standard Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 5.32 in Inlet to Outlet Length, 2.97 in Top to Inlet Center, 316 Stainless Steel Stem/RPTFE Seat Trim, RPTFE/MPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 8.47 lbs
Nominal Size: 1-1/4 in
End Style: Socket Weld
Pressure Rating: 1500 psig CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Actuator Type: Latch-Lock Lever
Ball Material: Stainless Steel
Inlet to Outlet Length: 5.32 in
Manufacturer Name: Aalberts Integrated Piping Systems
Series: 76-400
Top to Inlet Center: 2.97 in
Trim Material: 316 Stainless Steel Stem/RPTFE Seat
Includes: Adjustable Packing Gland
Warranty: 5 years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 316 Ball/Retainer/Gland Nut/Stem | ASTM A351 CF8M Body | ASTM A276 316 Tailpiece | ASTM A08-CS Union Nut | ASTM A276 316 Seat Holder | MSS SP-110
Item Features
- 27 - Stainless steel latch-lock lever and nut
- Heavy duty quarter-turn handles
- Blow-out proof stem
- 150 psi saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock
- RPTFE retainer seal/union and MPTFE stem packing
