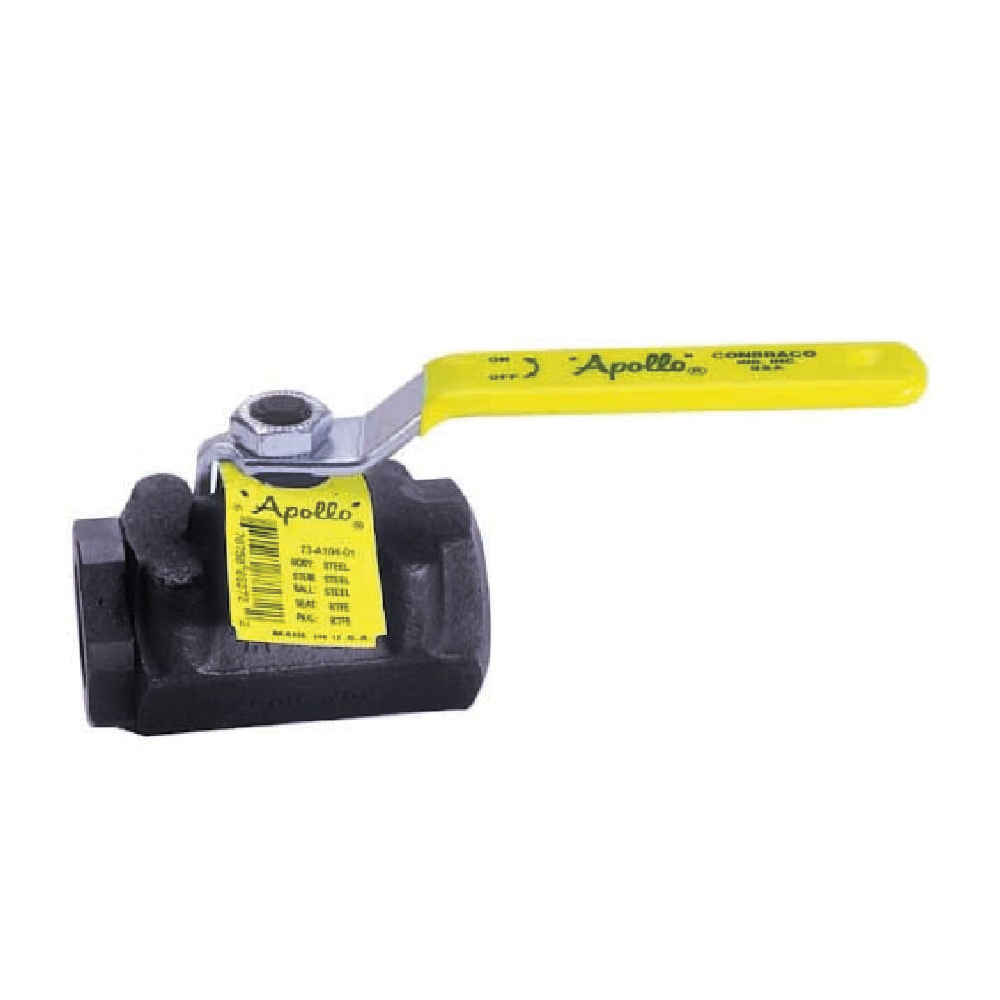

Apollo™ 73A-147-64 73A-140 Ball Valve, 1-1/2 in Nominal, FNPT End Style, 250 lb, Forged Carbon Steel Body, Standard Port, MTFE Softgoods, Domestic
CBPN: 37059
MPN:73A-147-64
Apollo™ 73A-147-64 has been discontinued by the manufacturer.
DESCRIPTION
Apollo™ Ball Valve, Series: 73A-140, 1-1/2 in Nominal, FNPT, 150 psi, 250 lb, -20 to 450 deg F, Standard Port, 1-1/4 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MTFE, Domestic
Apollo™ 73A-147-64 73A-140 Ball Valve, 1-1/2 in Nominal, FNPT End Style, 250 lb, Forged Carbon Steel Body, Standard Port, MTFE Softgoods, Domestic
CBPN: 37059
MPN:73A-147-64
Apollo™ 73A-147-64 has been discontinued by the manufacturer.
DESCRIPTION
Apollo™ Ball Valve, Series: 73A-140, 1-1/2 in Nominal, FNPT, 150 psi, 250 lb, -20 to 450 deg F, Standard Port, 1-1/4 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MTFE, Domestic
Specifications
Brand: Apollo™
Weight: 5.3 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 150 psi
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: MTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.32 in
Manufacturer Name: Apollo Conbraco
Orifice Size: 1-1/4 in
Series: 73A-140
Temperature Rating: -20 to 450 deg F
Top to Inlet Center: 3.12 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Includes: Adjustable Packing Gland
Warranty: 5 years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: A108-CS Gland Nut | A105 Carbon Steel Body | A276 316 Stainless Steel Ball | A108-1018 Retainer | A276 316 Stainless Steel Stem | AAR File No E999032 | A108-CS | A105 | MSS SP-110 | NACE MR0175 (2000)/MR0103 (2003) Compliant
Item Features
- Raised handle stops
- Blow-out proof stem
- Zinc phosphate corrosion protection
- MTFE stem packing and body seal
