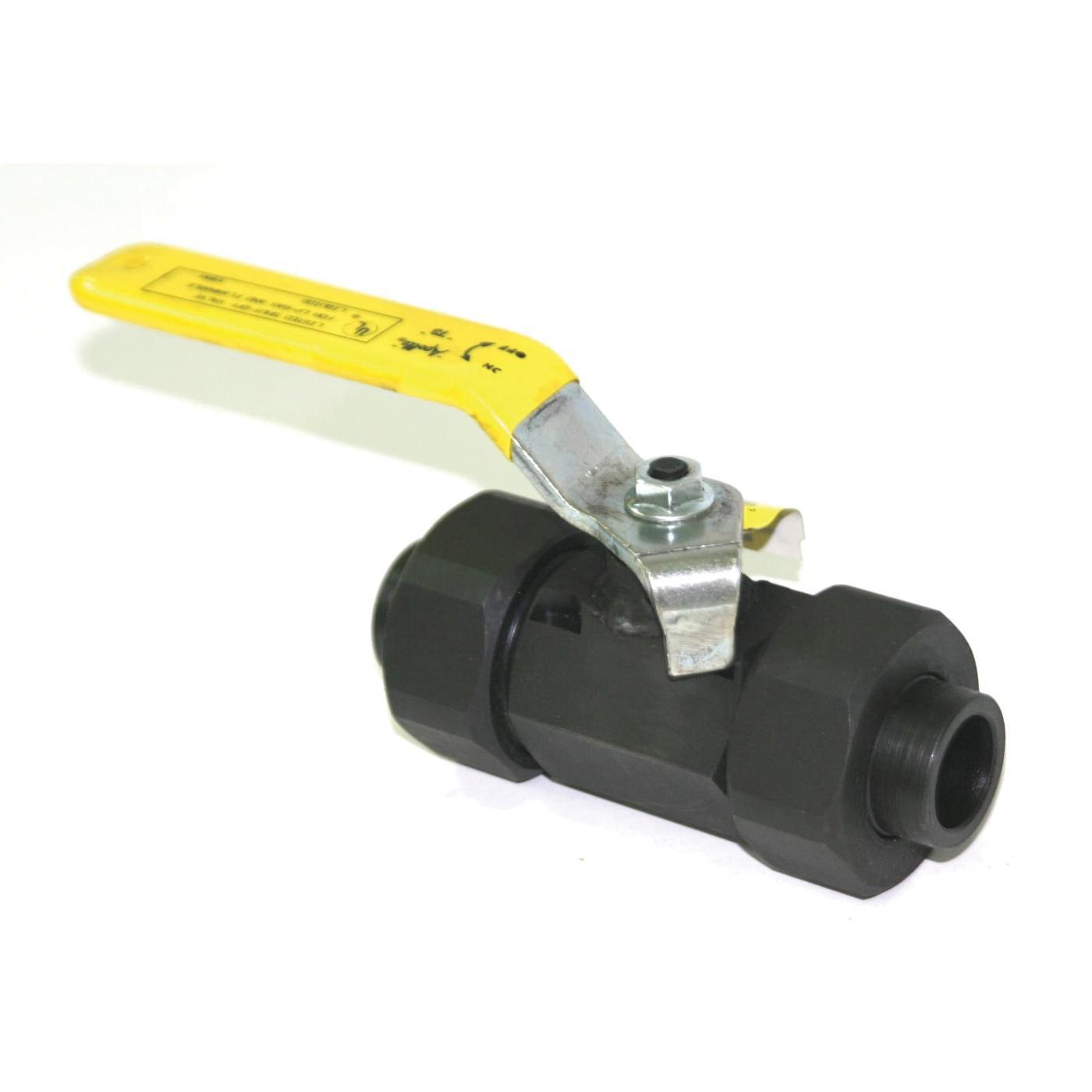

Apollo™ 73-405-01 73-400 2-Piece Ball Valve, 1 in Nominal, Socket Weld End Style, Carbon Steel Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:174819
UPC:670750689765
MPN:73-405-01
Price:
$377.81 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 73-400, 1 in Nominal, Socket Weld, 3000 psig CWP, Standard Port, Quarter Turn Lever Handle Actuator, Chrome Plated Carbon Steel Ball, 6.06 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Carbon Steel Body, Zinc Phosphate Carbon Steel Stem and RPTFE Seat Trim, RPTFE, Domestic
Apollo™ 73-405-01 73-400 2-Piece Ball Valve, 1 in Nominal, Socket Weld End Style, Carbon Steel Body, Standard Port, RPTFE Softgoods, Domestic
CBPN:174819
MPN:73-405-01
UPC:670750689765
Price:
$377.81 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 73-400, 1 in Nominal, Socket Weld, 3000 psig CWP, Standard Port, Quarter Turn Lever Handle Actuator, Chrome Plated Carbon Steel Ball, 6.06 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Carbon Steel Body, Zinc Phosphate Carbon Steel Stem and RPTFE Seat Trim, RPTFE, Domestic
Specifications
Brand: Apollo™
Weight: 7.04 lbs
Nominal Size: 1 in
End Style: Socket Weld
Pressure Rating: 3000 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Quarter Turn Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 6.06 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1 in
Series: 73-400
Top to Inlet Center: 3.12 in
Trim Material: Carbon Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Application: Natural And Manufactured Gases
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A08 Body | ASTM A08 Ball/Stem | MSS SP-110 | UL Listed | PROP65: Cancer and Reproductive Harm
Item Features
- Heavy duty quarter-turn lever
- Steel barstock design
- Easy installation and maintenance
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Guide YRPV - gas shut-off valve for use with natural and manufactured gases
- Guide YSTD - LP gas shut-off valve
- Guide YRBX - flammable liquid shut-off valve
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Double union end socket weld ball valve
