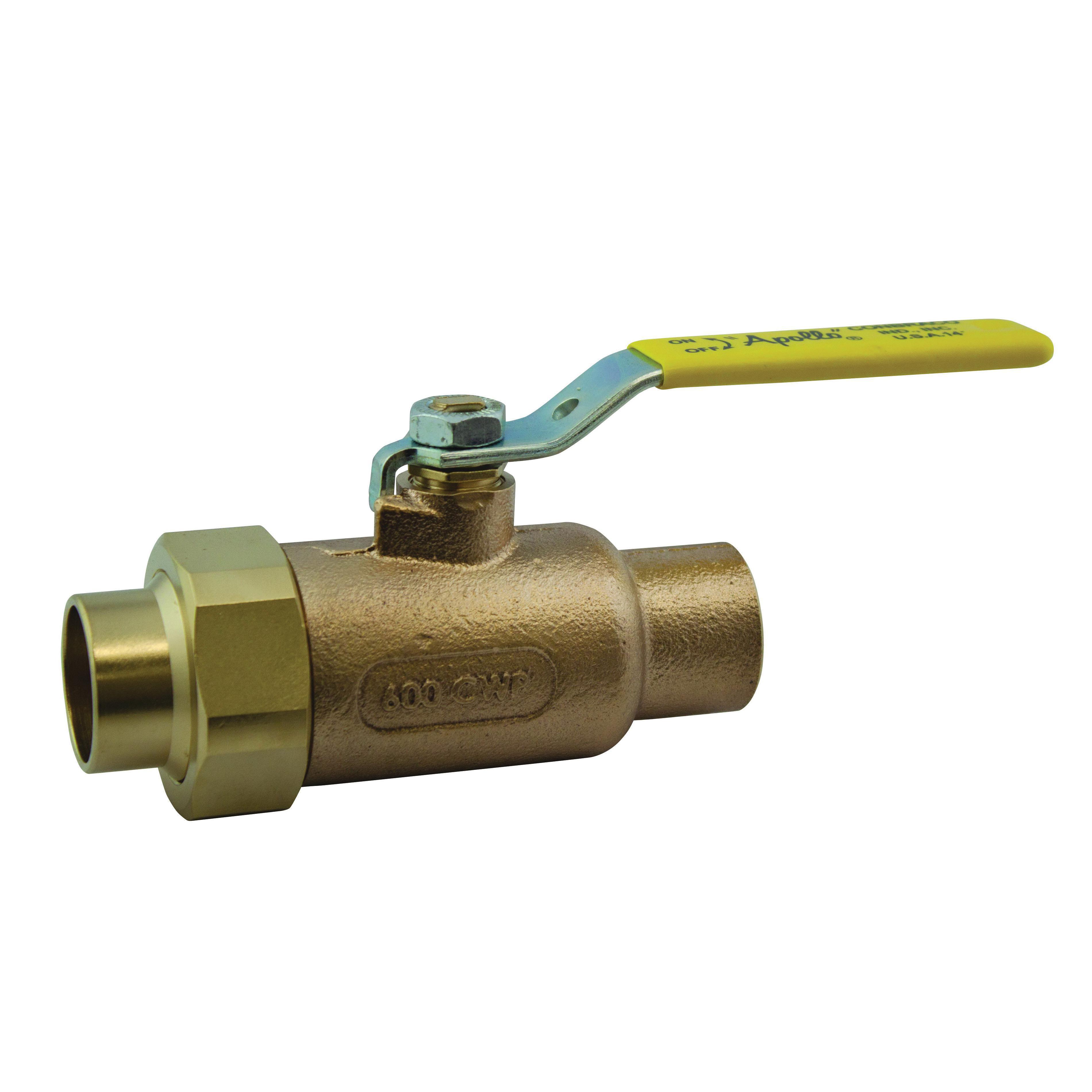

Apollo™ 7040501 70-400 Single Union Ball Valve, 1 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN:96131
UPC:670750672194
MPN:70-405-01
Price:
$126.49 / EA
Prop 65:
DESCRIPTION
Apollo™ 7040501, Single Union Ball Valve, Series: 70-400, 1 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Lever Operated Actuator, 5.06 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-400 Series is a standard port ball valve that is designed to be soft soldered in to lines without disassembly. Manufactured with proven ASTM Materials in the USA.
Apollo™ 7040501 70-400 Single Union Ball Valve, 1 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN:96131
MPN:70-405-01
UPC:670750672194
Price:
$126.49 / EA
Prop 65:
DESCRIPTION
Apollo™ 7040501, Single Union Ball Valve, Series: 70-400, 1 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Lever Operated Actuator, 5.06 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-400 Series is a standard port ball valve that is designed to be soft soldered in to lines without disassembly. Manufactured with proven ASTM Materials in the USA.
Specifications
Brand: Apollo™
Weight: 2.45 lbs
Nominal Size: 1 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 5.06 in
Manufacturer Name: Apollo Conbraco
Series: 70-400
Temperature Rating: 500 deg F
Top to Inlet Center: 2-1/4 in
Trim Material: Brass Stem and RPTFE Seat
Type: Union End
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM B16 Stem | ASTM B283-C37700 Ball | Federal Specifications WW-V-35C Type 2 | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Fluorocarbon O-Ring sealed single union requires only light torque to seal
- Cold non-shock
- 150 psig saturated steam
- Vacuum service to 29 in Hg
