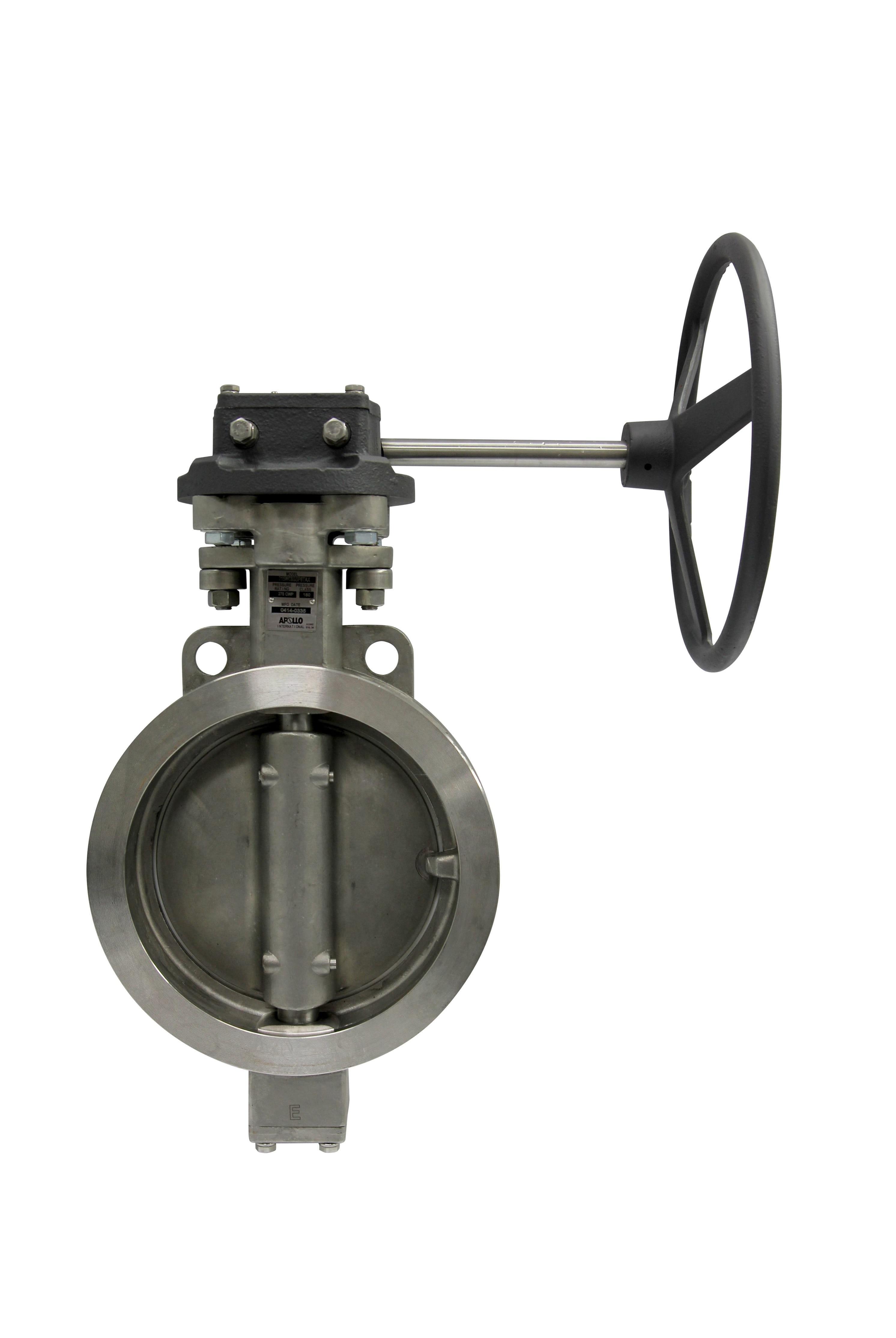

Apollo™ 215W24CSP2FC2 215 W Double Offset High Performance Wafer Style Butterfly Valve, 24 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite/Fire Safe Seat, 316SS Disc, Gear Operator, Domestic
CBPN: 290658
UPC:191988109769
MPN:215W24CSP2FC2
Price:
$26555.18 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™, 215W24CSP2FC2, Butterfly Valve, Double Offset High Performance Wafer Style, Series: 215 W, 24 in Nominal, 150 lb Pressure Class, Media: Water, Worm Gear Operated Actuator, 6.063 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, TFM/Graphite Softgoods, Polyamide Epoxy Primer
Apollo™ 215W Series double offset high performance Butterfly Valves are available in wafer body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
Apollo™ 215W24CSP2FC2 215 W Double Offset High Performance Wafer Style Butterfly Valve, 24 in Nominal, 150 lb, Carbon Steel Body, PTFE/Graphite/Fire Safe Seat, 316SS Disc, Gear Operator, Domestic
CBPN: 290658
MPN:215W24CSP2FC2
UPC:191988109769
Price:
$26555.18 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™, 215W24CSP2FC2, Butterfly Valve, Double Offset High Performance Wafer Style, Series: 215 W, 24 in Nominal, 150 lb Pressure Class, Media: Water, Worm Gear Operated Actuator, 6.063 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem & Pin, TFM/Graphite Softgoods, Polyamide Epoxy Primer
Apollo™ 215W Series double offset high performance Butterfly Valves are available in wafer body design. Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
Specifications
Brand: Apollo™
Weight: 735.88 lbs
Nominal Size: 24 in
Type: Double Offset High Performance Wafer
Body Material: Carbon Steel
Disc Material: Stainless Steel
Seat Material: PTFE/Graphite/Fire Safe
Actuator Type: Gear Operator
End Style: Wafer
Pressure Class: 150 lb
Finish: Polyamide Epoxy Primer
Inlet to Outlet Length: 6.063 in
Manufacturer Name: Aalberts Integrated Piping Systems
Media: Water
Series: 215 W
Stem & Pin Material: 17-4PH Stainless Steel
Application: Liquid and steam applications
Warranty: 5 Years
Domestic/Import: Domestic
Standards and Approvals: ANSI/FCI 70-2 | API 598/609 | ASME B16.10/B16.34/B16.5 | ASTM A216 | CE Listed | CRN 0C17459.CL | MSS SP-25 | MSS SP-44 | MSS SP-55 | MSS SP-61 | MSS SP-68 | NACE MR0103 | NSF/ANSI 372 | NSF/ANSI/CAN 61 | PED Compliant | PROP65: Cancer and Reproductive Harm
Item Features
- Multi-bolt retainer holds and supports seat
- Suitable for bi-directional dead end service at full pressure temperature rating
- Vacuum service to 29 in Hg
- Polyamide epoxy primer with high performance polyurethane topcoat
- Graphite seal/stem packing/TFM seat
- Well suited for a wide range of liquid and steam applications, defined in the high performance butterfly valve pressure-temperature charts
