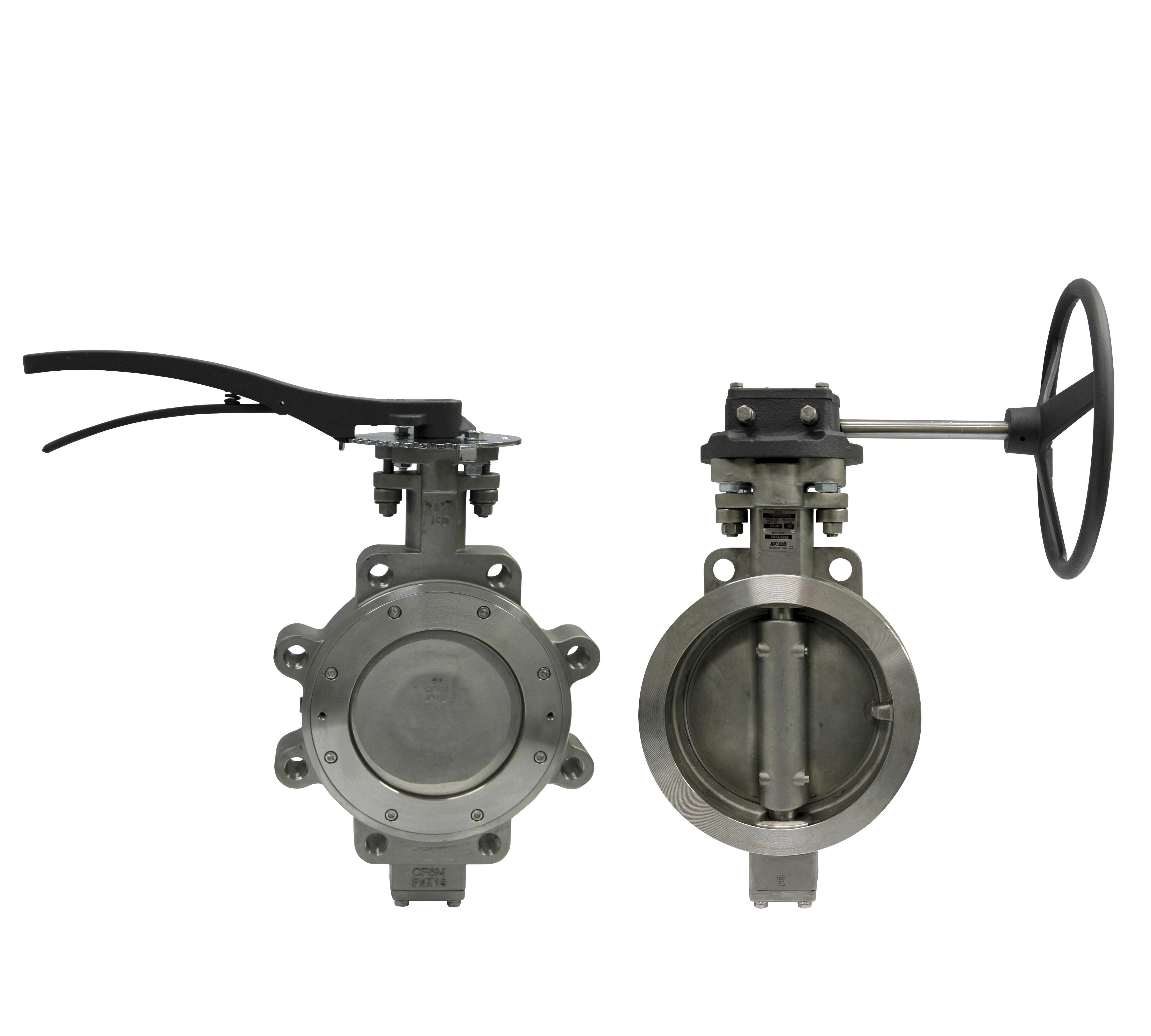

Apollo™ 215L24SSP8TA2 215L Double Offset High Performance Lug Style Butterfly Valve, 24 in Nominal, 150 lb, 316 Stainless Steel Body, PTFE Seat, 316SS Disc, Gear Operator, Domestic
CBPN:224413
UPC:670750092244
MPN:215L24SSP8TA2
Price:
$66178.09 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™, 215L24SSP8TA2, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215L, 24 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 20.787 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE Softgoods
Apollo™ 215L24SSP8TA2 215L Double Offset High Performance Lug Style Butterfly Valve, 24 in Nominal, 150 lb, 316 Stainless Steel Body, PTFE Seat, 316SS Disc, Gear Operator, Domestic
CBPN:224413
MPN:215L24SSP8TA2
UPC:670750092244
Price:
$66178.09 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™, 215L24SSP8TA2, Butterfly Valve, Double Offset High Performance Lug Style, Series: 215L, 24 in Nominal, 150 lb Pressure Class, Media: Steam, Worm Gear Operated Actuator, 20.787 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel Stem/Disc Pin Stem & Pin, PTFE Softgoods
Specifications
Brand: Apollo™
Weight: 793.15 lbs
Nominal Size: 24 in
Type: Double Offset High Performance Lug
Body Material: Stainless Steel
Disc Material: Stainless Steel
Seat Material: PTFE
Actuator Type: Gear Operator
End Style: Lug
Pressure Class: 150 lb
Manufacturer Name: Apollo Conbraco
Media: Steam
Series: 215L
Stem & Pin Material: 17-4PH Stainless Steel Stem/Disc Pin
Top to Inlet Center: 20.787 in
Trim Material: 17-4 PH Stainless Steel Stem
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Body/Disc | MSS SP-68 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Standard Apollo high performance butterfly valves are rated for 29 in Hg vacuum
- RTFM seat (TFM 1700 with glass)
- Standard Apollo special service
- Double offset high performance butterfly valve
- Rocker packing gland, shaped packing gland compensates for uneven adjustment of gland nuts
- Extended neck - allows for 2 in of pipe insulation
- Positive cast disc stop - prevents seat damage from over-travel of the disc beyond the closed position
- Jacking taps - allows the use of seat retainer bolts to aid in retainer removal
- Seat retainer, reliable multi-bolt retainer holds and supports the seat
- Corrosion protection - polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
- Blow-out proof stem, 17-4 PH stainless steel stem with high strength and good corrosion-resistance, designed per API 609 standard
- Anti-extrusion ring (under stem seals) - prevents the extrusion of stem seals, maintaining optimum seal
- Bearing (lower and upper) - full length provides maximum stem support
- Seat, an advanced free floating, pressure assisted, solid seat design provides an interference and pressure assisted seal
- 17-4 PH stainless steel disc pins are tangentially positioned, placing them in compression rather than shear
- Thrust ring, centers the disc, ensures tight shut-off and long service life, made of 316 stainless steel
