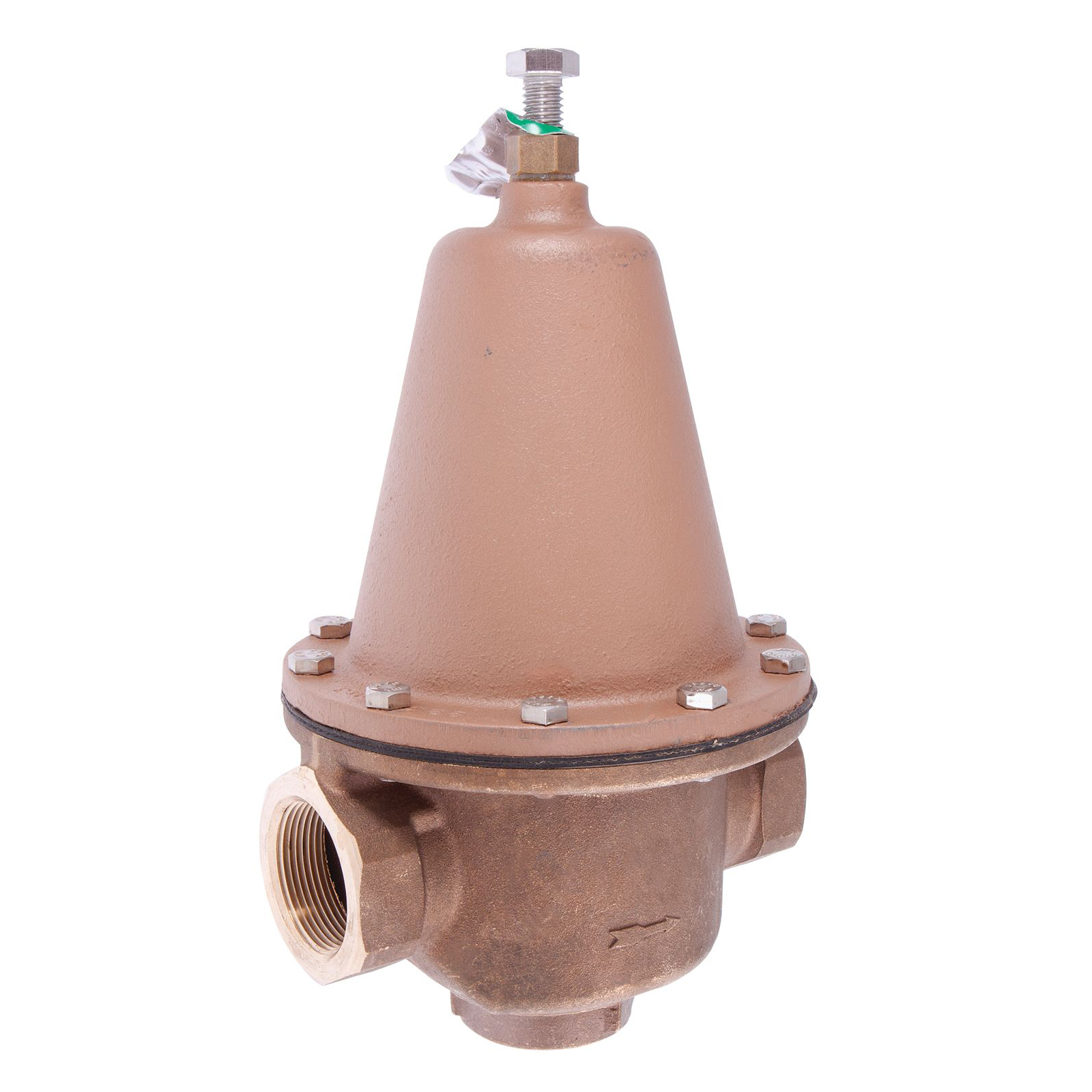

WATTS® 0298585 Standard Water Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic
CBPN:193390
UPC:098268350623
MPN:0298585
DESCRIPTION
WATTS® Water Pressure Reducing Valve, Standard, 2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Brass Body, Bronze Trim, Domestic
This 2 in high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free brass body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 PSI (172 to 517 kPa).
WATTS® 0298585 Standard Water Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic
CBPN:193390
MPN:0298585
UPC:098268350623
DESCRIPTION
WATTS® Water Pressure Reducing Valve, Standard, 2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Brass Body, Bronze Trim, Domestic
This 2 in high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free brass body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 PSI (172 to 517 kPa).
Specifications
Standards
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- Serviceable in line
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
- Sensitive spring and large diaphragm for accurate pressure control
- 25 to 75 psi adjustable reduced pressure range
- Reinforced EPDM disc
- 50 psi standard reduced pressure
