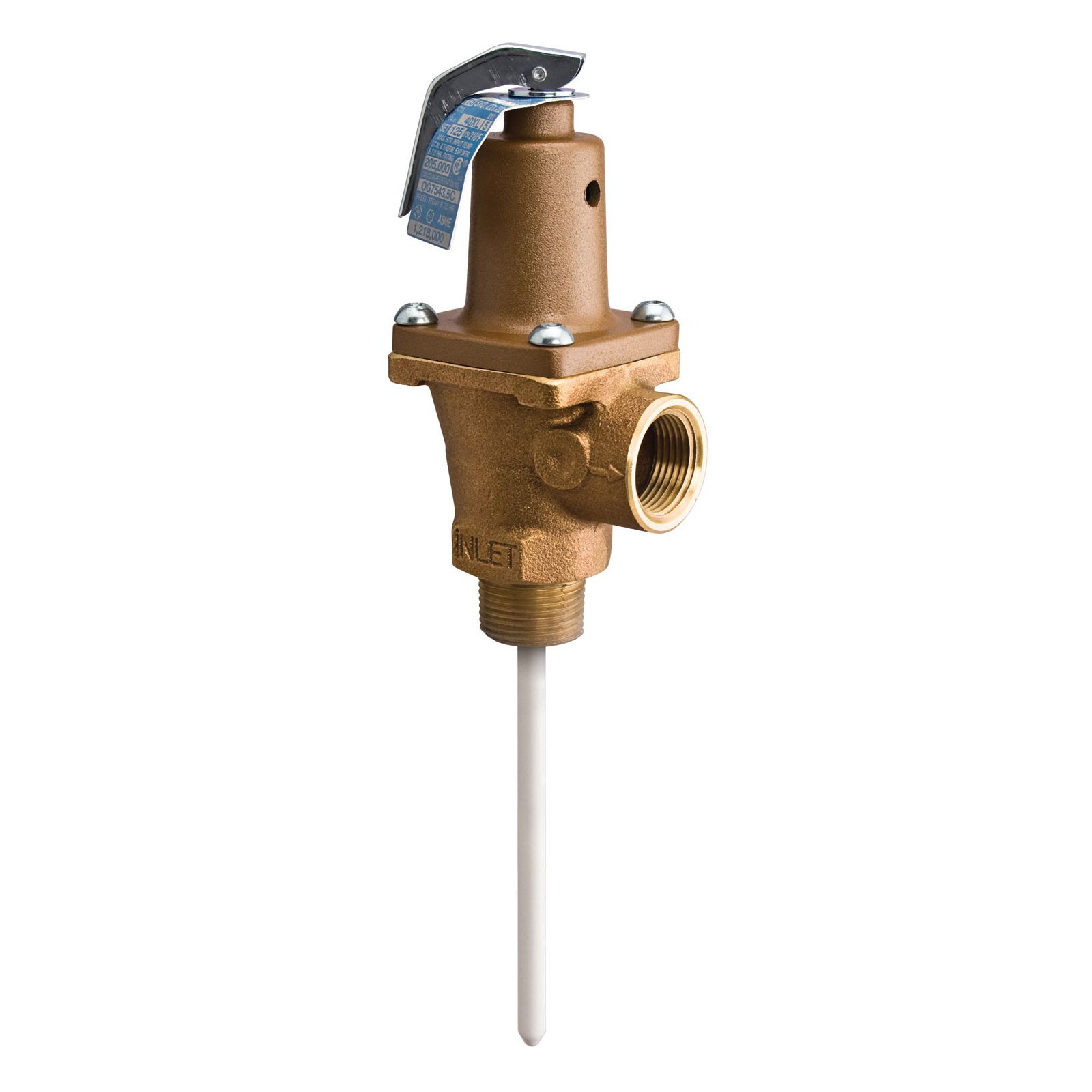

WATTS® 0156731 40XL-150210 Automatic Reseating Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, Bronze Body, Domestic
CBPN:7975
UPC:098268009767
MPN:0156731
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: 40XL-150210, 3/4 in Nominal, MNPT x FNPT, 150 psi Set Pressure, 210 deg F, Media: Gas/Hot Water/Oil, Bronze Body, 2-5/8 in W x 5-5/8 in H, Domestic
Series 40L, 40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model 40L has a short thermostat for installation directly in available tank tapings. Model 40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series 40L, 40XL valves are ASME rated and CSA listed.
WATTS® 0156731 40XL-150210 Automatic Reseating Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, Bronze Body, Domestic
CBPN:7975
MPN:0156731
UPC:098268009767
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: 40XL-150210, 3/4 in Nominal, MNPT x FNPT, 150 psi Set Pressure, 210 deg F, Media: Gas/Hot Water/Oil, Bronze Body, 2-5/8 in W x 5-5/8 in H, Domestic
Series 40L, 40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model 40L has a short thermostat for installation directly in available tank tapings. Model 40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series 40L, 40XL valves are ASME rated and CSA listed.
Specifications
Item Features
- Non-mechanical seat-to-disc alignment
- Thermostat is accurate and proven
- Exclusively designed and manufactured by WATTS®
- Tamper resistant bonnet screws
- Series 40 and 140 feature a unique thermostat with a special thermo-bonded coating
- 75/100/125/150 psi (5.27/7.03/8.79/10.55 bar) standard pressure settings
