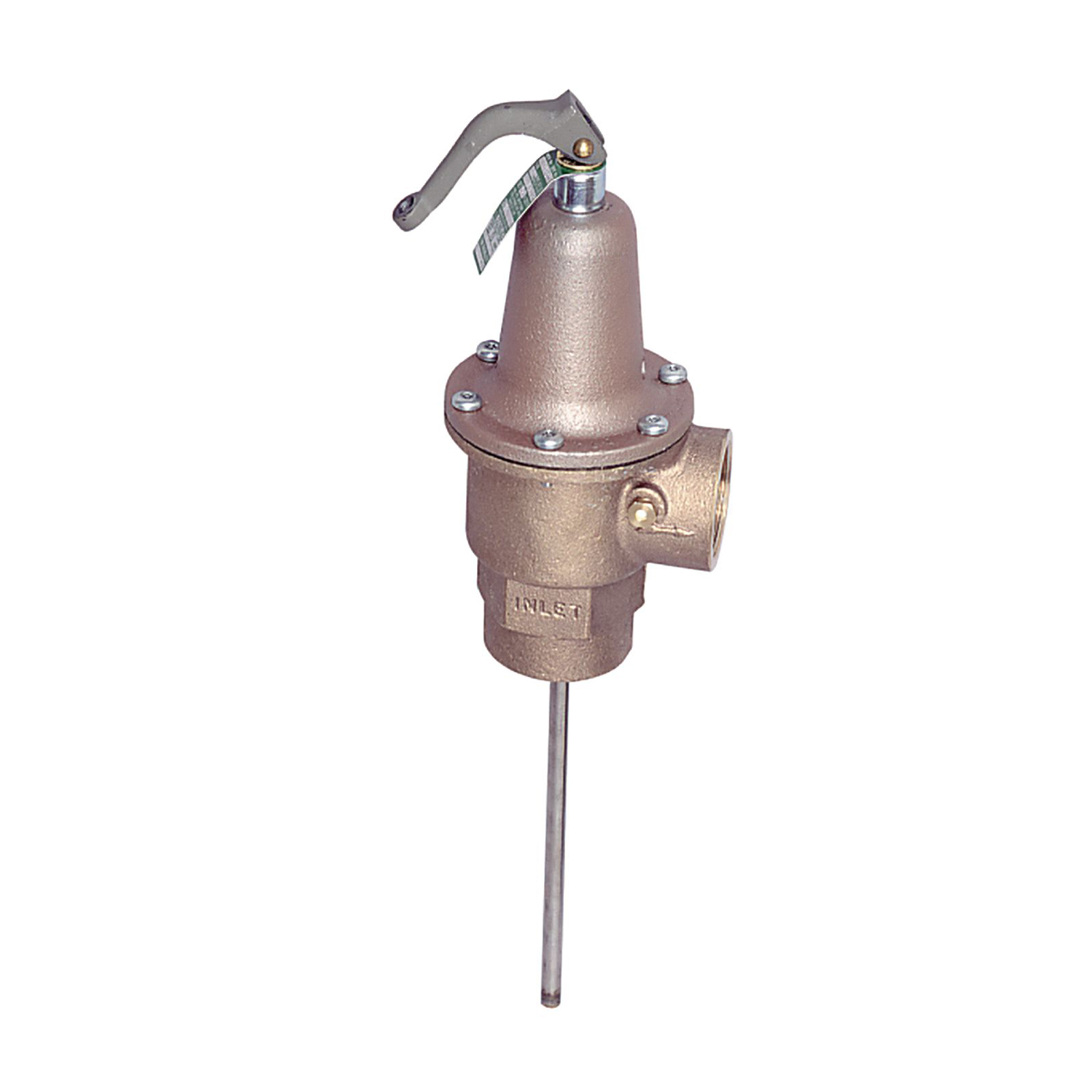

WATTS® 0121602 Automatic Reseating Temperature/Pressure Relief Valve, 1-1/2 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, Bronze Body, Domestic
CBPN:233638
UPC:098268587487
MPN:0121602
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, 1-1/2 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, 210 deg F, Media: Water, Bronze Body, 4-1/2 in W x 9-3/4 in H Dimensions, Domestic/Import: Domestic
Series LF340, LF340X Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a bronze body with NPT male inlet and NPT female outlet connections, stainless steel spring and thermostat tube, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF340 has a 3 in. (80mm) thermostat. Model LF340X has an 8 in. (200mm) thermostat. Series LF340, LF340X are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
WATTS® 0121602 Automatic Reseating Temperature/Pressure Relief Valve, 1-1/2 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, Bronze Body, Domestic
CBPN:233638
MPN:0121602
UPC:098268587487
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, 1-1/2 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure, 210 deg F, Media: Water, Bronze Body, 4-1/2 in W x 9-3/4 in H Dimensions, Domestic/Import: Domestic
Series LF340, LF340X Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a bronze body with NPT male inlet and NPT female outlet connections, stainless steel spring and thermostat tube, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF340 has a 3 in. (80mm) thermostat. Model LF340X has an 8 in. (200mm) thermostat. Series LF340, LF340X are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Specifications
Item Features
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- Series 3/4 in LF40, LF140 and 1 in LF40 feature a unique thermostat with a special thermo-bonded coating
- Series 1 in LF140 are furnished with stainless steel thermostat tube
- Series LFN240, LF340 and LF342 are furnished with stainless steel thermostat tube
- Inquire with governing authorities for local installation requirements
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
