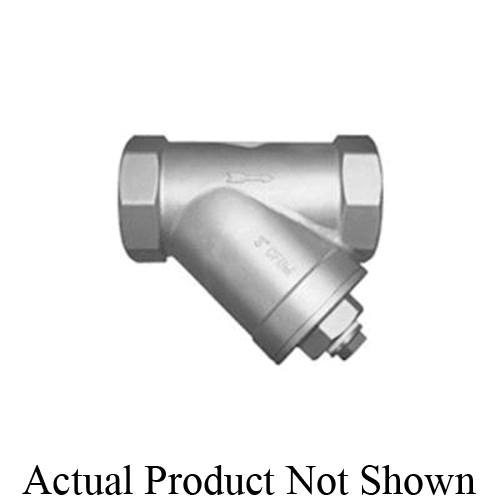

Titan® YS80TS0050 YS80T-SS Wye Strainer, 1/2 in Nominal, 21.33 in OAL, 300#, FNPT Connection, PTFE Softgoods
CBPN:250870
MPN:YS80TS0050
Price:
$40.48 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS80T-SS, 1/2 in Nominal, 21.33 in Overall Length, 300#, FNPT, 1/4 in NPT Blow-Off, PTFE, 316 Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS80TS0050 YS80T-SS Wye Strainer, 1/2 in Nominal, 21.33 in OAL, 300#, FNPT Connection, PTFE Softgoods
CBPN:250870
MPN:YS80TS0050
Price:
$40.48 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS80T-SS, 1/2 in Nominal, 21.33 in Overall Length, 300#, FNPT, 1/4 in NPT Blow-Off, PTFE, 316 Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 0.5 lbs
Nominal Size: 1/2 in
Body Material: Stainless Steel
Connection Type: FNPT
Pressure Class: 300 lb
Softgoods Material: PTFE
Overall Length: 21.33 in
Blow-Off Size: 1/4 in NPT
Grade: CF8M
Manufacturer Name: Titan Flow Control
Series: YS80T-SS
Application: Pumps, Meters, Spray Nozzles, Compressors and Turbines
Warranty: 1 Year
Standards and Approvals: ASME/ANSI B16.34 | ASME/ANSI B16.11 | ASME/ANSI B1.20.1 | ASTM A-351 Grade CF8M Body
Item Features
- Large straining capacity: With its large body and sizeable straining element, the YS55 provide excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline, minimizing pressure drop across the valve
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Threaded cap: Titan®'s YS80T and YS80S have straight threads to permit easy cap removal for cleaning and proper alignment when reassembling strainer
- PTFE gasket
