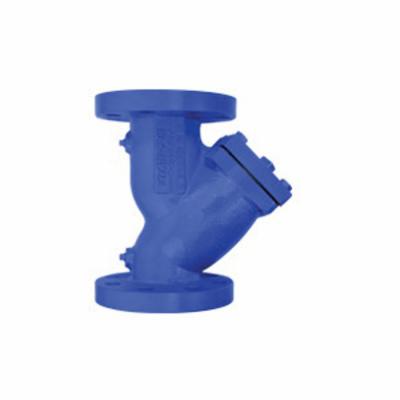

Titan® YS59I0800 YS59-CI Wye Strainer, 8 in, 23.37 in OAL, Raised Face Flanged Connection
CBPN:250730
MPN:YS59I0800
Price:
$1033.55 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS59-CI, 8 in Nominal, 23.37 in Overall Length, 250#, Raised Face Flanged, 2 in NPT Blow-Off, Cast Iron Body, Epoxy Painted, Grade B
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS59I0800 YS59-CI Wye Strainer, 8 in, 23.37 in OAL, Raised Face Flanged Connection
CBPN:250730
MPN:YS59I0800
Price:
$1033.55 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS59-CI, 8 in Nominal, 23.37 in Overall Length, 250#, Raised Face Flanged, 2 in NPT Blow-Off, Cast Iron Body, Epoxy Painted, Grade B
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 338 lbs
Nominal Size: 8 in
Body Material: Cast Iron
Connection Type: Raised Face Flanged
Pressure Class: 250 lb
Overall Length: 23.37 in
Blow-Off Size: 2 in NPT
Finish: Epoxy Painted
Grade: B
Manufacturer Name: Titan Flow Control
Series: YS59-CI
Application: Pumps, Meters, Spray Nozzles, Compressors and Turbines
Standards and Approvals: ANSI Class 250 | ASME/ANSI B16.1 | A-126 Grade B Body
Item Features
- Large straining capacity: With its large body and sizeable straining element, the YS58 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: All units are epoxy painted to help resist rust and corrosion
- Non-asbestos gasket
