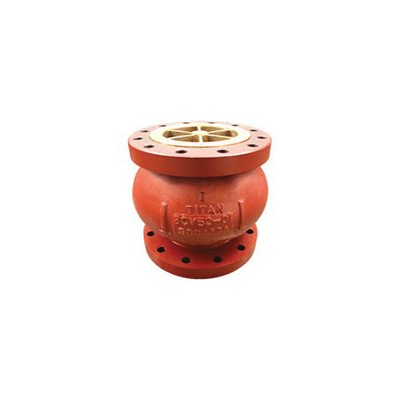

Titan® CV52DBM1200 Model CV52-DI-B Center Guided Globe Silent Check Valve, 12 in Nominal, Raised Face Flanged End Style, 300 lb, Ductile Iron Body
CBPN:251470
MPN:CV52DBM1200
Price:
$4913.42 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Silent Check Valve, Center Guided Globe, Series: Model CV52-DI-B, 12 in Nominal, Raised Face Flanged End Style, 640 psi WOG Pressure, 300 lb Pressure Class, 100 deg F, 20-7/8 in Inlet to Outlet Length, Ductile Iron Body, Aluminum Bronze/Stainless Steel Trim, Epoxy Painted, 22-1/8 in Dia Dimensions
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV52DBM1200 Model CV52-DI-B Center Guided Globe Silent Check Valve, 12 in Nominal, Raised Face Flanged End Style, 300 lb, Ductile Iron Body
CBPN:251470
MPN:CV52DBM1200
Price:
$4913.42 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Silent Check Valve, Center Guided Globe, Series: Model CV52-DI-B, 12 in Nominal, Raised Face Flanged End Style, 640 psi WOG Pressure, 300 lb Pressure Class, 100 deg F, 20-7/8 in Inlet to Outlet Length, Ductile Iron Body, Aluminum Bronze/Stainless Steel Trim, Epoxy Painted, 22-1/8 in Dia Dimensions
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 432 lbs
Nominal Size: 12 in
End Style: Raised Face Flanged
Pressure Class: 300 lb
Body Material: Ductile Iron
Dimensions: 22-1/8 in Dia
Finish: Epoxy Painted
Inlet to Outlet Length: 20-7/8 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 640 psi WOG
Series: Model CV52-DI-B
Temperature Rating: 100 deg F
Trim Material: Aluminum Bronze/Stainless Steel
Type: Center Guided Globe
Application: Oil and Gas Production, General Industry, Chemical, Petrochemical, Power, Food and Beverage Industries
Standards and Approvals: ANSI B16.5/B16.42 | API 598 | ASTM A536 Body | ASTM B148 Disc/Seat | MSS SP-6/SP-25/SP-55
Item Features
- Designed for long service life - Ductile iron body maintains the anti-corrosive properties of cast iron while achieving a yield strength comparable to carbon steel
- Ductile iron check valves also offer higher pressure and temperature ratings when compared to cast iron check valves of the same class
- Head loss is minimized by providing a large cross-sectional area which exceeds that of the adjacent pipeline
- Additionally, the spring loaded, center guided disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer - Silent shut-off is achieved via the fully automatic, spring assisted disc that closes near zero flow velocity
- The lightweight, center guided disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Metal-to-metal seats - Precision machined sealing surfaces allow the CV52-DI to maintain a tight seal that meets or exceeds API 598 leakage requirements
- Versatile and economic design - This valve can be installed in any position (horizontal or vertical with upward flow)
- Certain sizes allow direct mounting of a wafer type butterfly valve to the outlet end without requiring a space flange or spool piece
