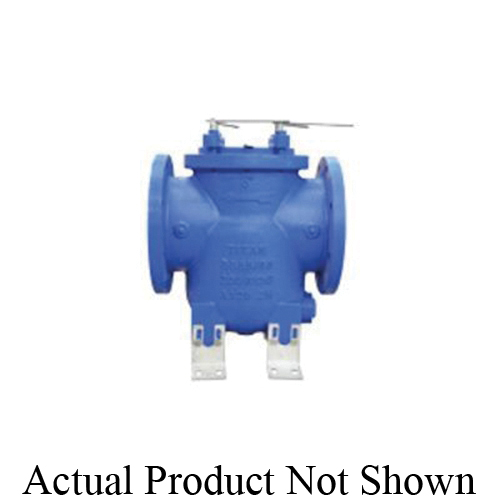

Titan® BS55I1000 BS55-CI Simplex Basket Strainer With Cast Iron Quick-Open Clamp Cover, 10 in Nominal, 22 in OAL, ANSI 125 Flanged Connection, Cast Iron, Cover Gasket Buna-N
CBPN:251053
MPN:BS55I1000
Price:
$2342.21 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS55-CI, 10 in Nominal, 22 in Overall Length, ANSI 125 Flanged, Cast Iron, Epoxy Painted, Grade B
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Titan® BS55I1000 BS55-CI Simplex Basket Strainer With Cast Iron Quick-Open Clamp Cover, 10 in Nominal, 22 in OAL, ANSI 125 Flanged Connection, Cast Iron, Cover Gasket Buna-N
CBPN:251053
MPN:BS55I1000
Price:
$2342.21 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS55-CI, 10 in Nominal, 22 in Overall Length, ANSI 125 Flanged, Cast Iron, Epoxy Painted, Grade B
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Specifications
Brand: Titan®
Weight: 436.8 lbs
Nominal Size: 10 in
Material: Cast Iron
Connection Type: ANSI 125 Flange
Pressure Class: 125 lb
Cover Gasket: Buna-N
Finish: Epoxy Painted
Grade: B
Manufacturer Name: Titan Flow Control
Overall Length: 22 in
Series: BS55-CI
Application: Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Petroleum, Oil and Gas, Transportation, Marine Industry and Food Industry
Standards and Approvals: ANSI Class 125 | ASME/ANSI B16.1 | ASTM A126 Grade B Body and Cover | FDA Approved | NSF/ANSI
Item Features
- Versatile, high quality construction: Epoxy painted and come standard with a plugged side drain connection, also feature removable /adjustable leg brackets
- Pressure loss is minimized by providing a slanted straining element design, a straight through flow path and a large open area ratio
- Inlet and outlet bosses are provided to facilitate the mounting of pressure gauges to monitor pressure loss
- Large straining capacity: With its large body and sizeable straining element, this basket strainer has the ability to store large quantities of debris without affecting pressure loss thus maximizing time between servicing
- The standard material for straining elements is type 304 stainless steel and features a bow shaped handle that presses against the cover to help ensure The straining element remains securely seated during operation
