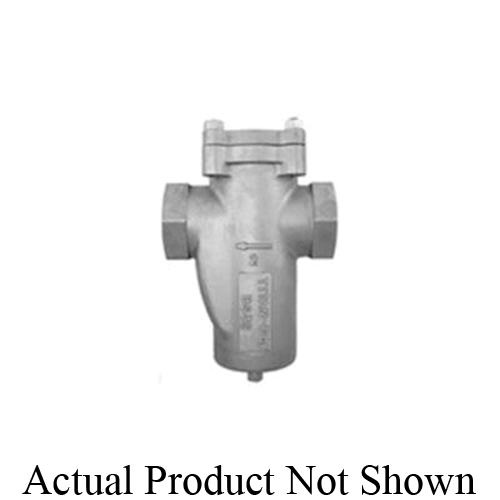

Titan® BS35S0200 Simplex Basket Strainer With 316 Stainless Steel Bolted Cover, 2 in, FNPT, 300 lb, 8-1/4 in OAL, 316 Stainless Steel, Cover Gasket Viton
CBPN:251043
UPC:046564021532
MPN:BS35S0200
Price:
$1116.44 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS35-SS, 2 in Nominal Size, 8-1/4 in Overall Length, FNPT Connection, 316 Stainless Steel, Grade: CF8M
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Titan® BS35S0200 Simplex Basket Strainer With 316 Stainless Steel Bolted Cover, 2 in, FNPT, 300 lb, 8-1/4 in OAL, 316 Stainless Steel, Cover Gasket Viton
CBPN:251043
MPN:BS35S0200
UPC:046564021532
Price:
$1116.44 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS35-SS, 2 in Nominal Size, 8-1/4 in Overall Length, FNPT Connection, 316 Stainless Steel, Grade: CF8M
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Specifications
Brand: Titan®
Weight: 25.5 lbs
Nominal Size: 2 in
Material: Stainless Steel
Connection Type: FNPT
Pressure Class: 300 lb
Cover Gasket: Viton
Grade: CF8M
Manufacturer Name: Titan Flow Control
Overall Length: 8-1/4 in
Series: BS35-SS
Application: Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Petroleum, Oil and Gas, Transportation, Marine Industry and Food Industry
Warranty: 1 Year
Standards and Approvals: A351 Grade CF8M Body and Cover | ANSI Class 300 | ASME/ANSI B16.11
Item Features
- High quality construction: It features a machined groove that encapsulates the cover gasket and aids in preventing gasket blow-outs
- Pressure loss is minimized by providing an over the top flow path and large straining area, the straining capacity is a minimum of six times that of The connecting pipe
- Large straining capacity: With its large body and sizeable straining element, this basket strainer has The ability to store large quantities of debris-thus maximizing time between servicing
- It also features a machined seat with O-ring that enables fine filtrations down to 40 micron
- The standard material for straining elements is type 304 stainless steel
