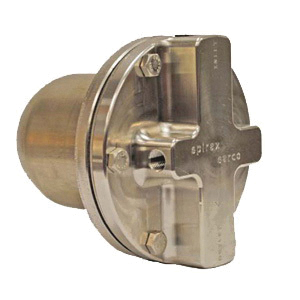

Spirax Sarco 74698, FTS150H Ball Float and Thermostatic Steam Trap, 1/2 in, FNPT, 300 psig, Stainless Steel
CBPN:240141
MPN:74698
Price:
$1652.19 / EA
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 300 psig, Stainless Steel
Ball float (FT) mechanical steam traps have an integral air vent as standard and the options of a manually adjustable needle valve (SLR - steam lock release mechanism) and drain cock tapping, the FT range is adaptable to all applications where ball float traps are recommended and instantaneous removal of condensate is required.
Spirax Sarco 74698, FTS150H Ball Float and Thermostatic Steam Trap, 1/2 in, FNPT, 300 psig, Stainless Steel
CBPN:240141
MPN:74698
Price:
$1652.19 / EA
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 300 psig, Stainless Steel
Ball float (FT) mechanical steam traps have an integral air vent as standard and the options of a manually adjustable needle valve (SLR - steam lock release mechanism) and drain cock tapping, the FT range is adaptable to all applications where ball float traps are recommended and instantaneous removal of condensate is required.
Specifications
Brand: Spirax Sarco
Weight: 6.9 lbs
Nominal Size: 1/2 in
End Style: FNPT
Max Operating Pressure: 150 psig
Max Allowable Pressure: 450 psig/up to 750 deg F
Max Allowable Temperature: 750 deg F/up to 450 psig
Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Series: FTS150H
Country of Origin: US
Item Features
- Inline horizontal installation
- Immediate condensate discharge with clean, tight shut-off, no backup of condensate ensures maximum plant efficiency
- Works efficiently on both heavy and light loads with no passage of live steam
- Not affected by wide and sudden fluctuations of pressure or flowrate
- Stainless steel internals that can tolerate corrosive condensate
- Integral air vent to ensure rapid warm-up of plant
- Robust construction to guarantee long life against water hammer and vibration
