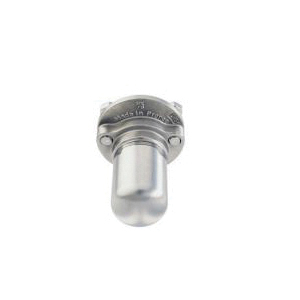

Spirax Sarco 6250251, USM21 Universal Bi-Metal Steam Trap, 90 deg F, 300 psig, Stainless Steel
CBPN:239501
MPN:6250251
DESCRIPTION
Spirax Sarco Steam Trap, Universal Bi-Metal, 300 psig, Stainless Steel, 90 deg F
The USM21 is a pre-set and maintenance free sealed bimetallic steam trap manufactured in stainless steel. It is designed for steam pressures up to 21 bar and applications such as steam tracing and mains drips. When installed in any position with a suitable pipeline connector the USM21 can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime.
Except for start-up and shutdown, Spirax Sarco 6250251, which has a nominal subcooled temperature of -90°F (-50°C), must operate above the minimum differential pressure values of 8 psig (0.5 bar g).
Spirax Sarco 6250251, USM21 Universal Bi-Metal Steam Trap, 90 deg F, 300 psig, Stainless Steel
CBPN:239501
MPN:6250251
DESCRIPTION
Spirax Sarco Steam Trap, Universal Bi-Metal, 300 psig, Stainless Steel, 90 deg F
The USM21 is a pre-set and maintenance free sealed bimetallic steam trap manufactured in stainless steel. It is designed for steam pressures up to 21 bar and applications such as steam tracing and mains drips. When installed in any position with a suitable pipeline connector the USM21 can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime.
Except for start-up and shutdown, Spirax Sarco 6250251, which has a nominal subcooled temperature of -90°F (-50°C), must operate above the minimum differential pressure values of 8 psig (0.5 bar g).
Specifications
Item Features
- Maximum operating temperature: 752 deg F
- Maximum allowable pressure: 104 deg F at 725 psig
- Maximum allowable temperature: 420 psig at 842 deg F
- Maximum operating temperature: 400 deg C at 21 barg
- Designed for a maximum cold hydraulic test pressure of 75 barg
- Horizontal or vertical installation
