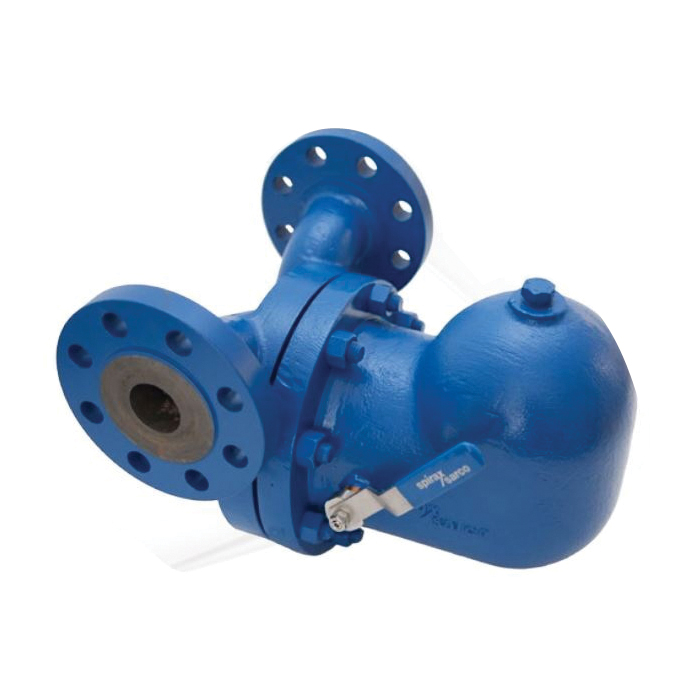

Spirax Sarco 6050196 FTC23-23 Ball Float and Thermostatic Steam Trap With Manual Blowdown and Stainless Steel Cover, 2 in Nominal, Flanged End Style, 32 to 797 deg F, 23 bar g Pressure, Carbon Steel
CBPN:270849
MPN:6050196
Price:
$7924.34 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, Series: FTC23-23, 2 in Nominal, Flanged End Style, 320 mm Length, 23 bar g Pressure, Carbon Steel, 32 to 797 deg F, 310 mm W x 305 in H Dimensions
FT_23 Ball Float Steam Traps are suitable for use with saturated and superheated steam, on process equipment and the first choice for drainage of temperature controlled systems.
Spirax Sarco 6050196 FTC23-23 Ball Float and Thermostatic Steam Trap With Manual Blowdown and Stainless Steel Cover, 2 in Nominal, Flanged End Style, 32 to 797 deg F, 23 bar g Pressure, Carbon Steel
CBPN:270849
MPN:6050196
Price:
$7924.34 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, Series: FTC23-23, 2 in Nominal, Flanged End Style, 320 mm Length, 23 bar g Pressure, Carbon Steel, 32 to 797 deg F, 310 mm W x 305 in H Dimensions
FT_23 Ball Float Steam Traps are suitable for use with saturated and superheated steam, on process equipment and the first choice for drainage of temperature controlled systems.
Specifications
Brand: Spirax Sarco
Weight: 88 lbs
Nominal Size: 2 in
End Style: ANSI 150 Flange
Max Operating Pressure: 23 bar
Max Allowable Pressure: 19.6 barg/up to 38 deg C
Max Allowable Temperature: 425 deg C/up to 5.5 barg
Material: Carbon Steel
Dimensions: 310 mm W x 305 in H
Length: 320 mm
Manufacturer Name: Spirax-Sarco Inc
Series: FTC23-23
Application: For saturated and superheated steam, on process equipment and the first choice for drainage of temperature controlled systems
Standards and Approvals: ANSI Class 150 | ASME B16.5 | ASTM A216 Grade WCB | ASTM A351 Grade CF8 | CE Certified | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC
Item Features
- They are the perfect choice in solving problems caused by steam that is carrying solid and incondensable contaminants such as salts and gasses
- These quickly lead to fouling and the accumulation of sediment and debris, resulting in failure of the internal mechanism
- They are typically used on geothermal steam
- The main design feature is the innovative self-cleaning float closing mechanism, which allows automatic safe operation even in cases of severe steam contamination
- Furthermore, the position and size of the main valve and seat makes it easier for the discharge of condensate and solid contaminant
- The trap is able to modulate the condensate flow adapting immediately to sudden and large variations of flow and pressure
- Another key feature of the unit is the external manual lever that allows the valve ball to be fully opened regardless of the presence or absence of condensate in the unit
- This facilitates the fast removal of any sediment/condensate that may be in the unit and easier inspection in maintaining optimum performance of the internal mechanism
