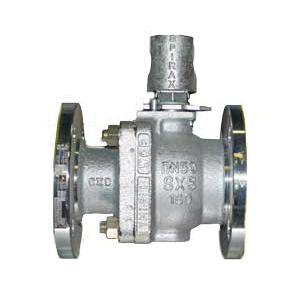

Spirax Sarco 3501125 M33S3 ISO Ball Valve, 6 in Nominal, ANSI 150 Flange End Style, 253 psig Pressure, Stainless Steel Body, Handle Actuator
CBPN:222153
MPN:3501125
Price:
$11780.39 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Ball Valve, 6 in Nominal, ANSI 150 Flange End Style, 253 psig Pressure, Full Port, Media: Gas/Oil/Steam/Water, Stainless Steel Body, Stainless Steel Ball, Stainless Steel Trim, PDR 0.8 Seat/FKM O-Ring/PTFE Packing Softgoods, Handle Actuator, -20 to 500 deg F
Produced in accordance with API 6D the M33S ISO full bore two-piece body ball valve with floating ball, has been designed for use as an isolating valve, not a control valve. It can be used with the majority of industrial fluids on applications, which include steam, condensate, water, oil, gases, and other fluids within its operating range.
Spirax Sarco 3501125 M33S3 ISO Ball Valve, 6 in Nominal, ANSI 150 Flange End Style, 253 psig Pressure, Stainless Steel Body, Handle Actuator
CBPN:222153
MPN:3501125
Price:
$11780.39 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Ball Valve, 6 in Nominal, ANSI 150 Flange End Style, 253 psig Pressure, Full Port, Media: Gas/Oil/Steam/Water, Stainless Steel Body, Stainless Steel Ball, Stainless Steel Trim, PDR 0.8 Seat/FKM O-Ring/PTFE Packing Softgoods, Handle Actuator, -20 to 500 deg F
Produced in accordance with API 6D the M33S ISO full bore two-piece body ball valve with floating ball, has been designed for use as an isolating valve, not a control valve. It can be used with the majority of industrial fluids on applications, which include steam, condensate, water, oil, gases, and other fluids within its operating range.
Specifications
Brand: Spirax Sarco
Weight: 177 lbs
Nominal Size: 6 in
End Style: ANSI 150 Flange
Pressure Rating: 253 psig
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PDR 0.8 Seat/FKM O-Ring/PTFE Packing
Actuator Type: Handle
Ball Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Media: Gas/Oil/Steam/Water
Temperature Rating: -20 to 500 deg F
Trim Material: Stainless Steel
Country of Origin: US
Standards and Approvals: B 16.10 Dimensions | ISO 5211
Item Features
- Precision design providing compact valves
- Quarter turn on/off ensuring easy operation and maintenance
- Low torque valves with smaller actuators for automation
- Unrestricted flow allowing low pressure drop and high capacity
- Corrosion resistant bodies ensure long life of the product
- Maximum cold hydraulic test pressure: 413 psig
- Maximum allowable pressure: 290 psig at 100 deg F
- Maximum allowable/operating temperature: 500 deg F at 0 psig
- 253 psig maximum operating pressure for saturated steam service
- ANSI B 16.34 body design condition
- 2786 Cv
- 442 lb/ft torque
- 15-1/2 in inlet to outlet length
- 11.1 in top to inlet center
