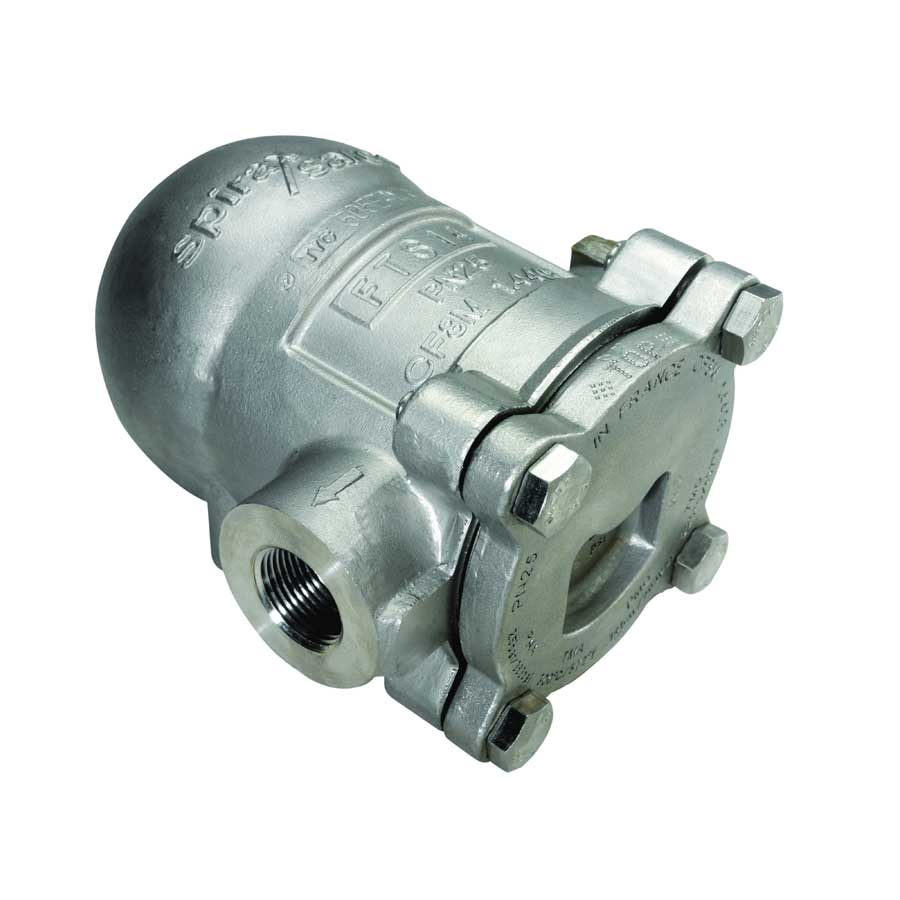

Spirax Sarco 1455755, FTS14-10 Ball Float and Thermostatic Steam Trap, 1 in, Socket Weld, 225 deg C, 150 psig, 316 Austenitic Stainless Steel
CBPN:222228
MPN:1455755
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, Series: FTS14, 1 in Nominal, Socket Welded End Style, 139 mm Length, 150 psig Pressure, 316 Austenitic Stainless Steel, 225 deg C, 113 mm H Dimensions, Domestic/Import: Domestic
The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential. As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.
Spirax Sarco 1455755, FTS14-10 Ball Float and Thermostatic Steam Trap, 1 in, Socket Weld, 225 deg C, 150 psig, 316 Austenitic Stainless Steel
CBPN:222228
MPN:1455755
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, Series: FTS14, 1 in Nominal, Socket Welded End Style, 139 mm Length, 150 psig Pressure, 316 Austenitic Stainless Steel, 225 deg C, 113 mm H Dimensions, Domestic/Import: Domestic
The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential. As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.
Specifications
Item Features
- Maximum allowable pressure: 25 barg at 50 deg C
- Maximum allowable temperature: 300 deg C
- Maximum cold hydraulic test pressure: 37.5 barg
- Maximum operating temperature: 225 deg C at 19 barg
- PN25 Body design conditions
