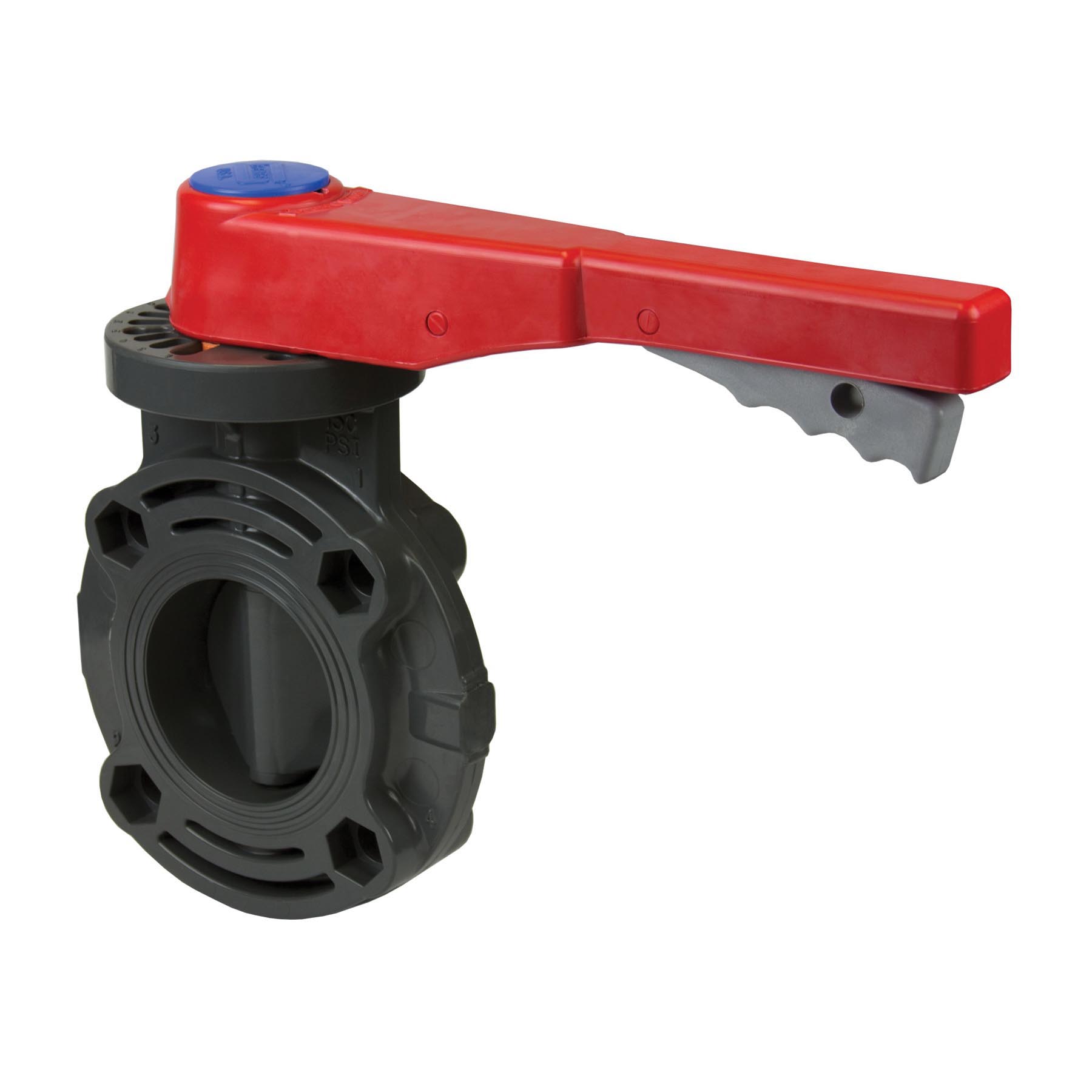

Spears® 723311-025C Lug Butterfly Valve, 2-1/2 in Nominal, 150 lb, CPVC Body, FKM Softgoods, Domestic
CBPN:237146
UPC:054211421161
MPN:723311-025C
DESCRIPTION
Spears® Butterfly Valve, Lug, 2-1/2 in Nominal, 150 lb, 73 deg F, Media: Water, Lever Handle Actuator, 2 in Inlet to Outlet Length, 6-25/32 in Top to Inlet Center, CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, FKM, Gray, 6-3/4 in Dia x 10-9/32 in H, Domestic
All thermoplastic valves shall be Butterfly type constructed from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. All valve seats and O-rings shall be Buna-N, EPDM or FKM. Seat shall be a non-liner type interlocked to valve body. Bolt hole patterns shall conform to ANSI/ASME B16.5 CL 150. Disc shall be offset design with fully isolated Type 316L stainless steel stem and Type 316 stainless steel hardware. Lever operated valves shall be equipped with high impact polypropylene handle having built-in lockout capability. Gear operated valves shall be equipped with position indicator and high impact polypropylene handwheel. Valve bodies shall accept field installable lug inserts or shall be factory installed lug inserts, or be True Lug type. Lugs shall be stainless steel or zinc plated steel. Valves shall be pressure rated at 150 psi for water at 73 deg F through 12 in, as manufactured by Spears® Manufacturing Company.
Spears® 723311-025C Lug Butterfly Valve, 2-1/2 in Nominal, 150 lb, CPVC Body, FKM Softgoods, Domestic
CBPN:237146
MPN:723311-025C
UPC:054211421161
DESCRIPTION
Spears® Butterfly Valve, Lug, 2-1/2 in Nominal, 150 lb, 73 deg F, Media: Water, Lever Handle Actuator, 2 in Inlet to Outlet Length, 6-25/32 in Top to Inlet Center, CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, FKM, Gray, 6-3/4 in Dia x 10-9/32 in H, Domestic
All thermoplastic valves shall be Butterfly type constructed from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. All valve seats and O-rings shall be Buna-N, EPDM or FKM. Seat shall be a non-liner type interlocked to valve body. Bolt hole patterns shall conform to ANSI/ASME B16.5 CL 150. Disc shall be offset design with fully isolated Type 316L stainless steel stem and Type 316 stainless steel hardware. Lever operated valves shall be equipped with high impact polypropylene handle having built-in lockout capability. Gear operated valves shall be equipped with position indicator and high impact polypropylene handwheel. Valve bodies shall accept field installable lug inserts or shall be factory installed lug inserts, or be True Lug type. Lugs shall be stainless steel or zinc plated steel. Valves shall be pressure rated at 150 psi for water at 73 deg F through 12 in, as manufactured by Spears® Manufacturing Company.
Specifications
Item Features
- Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
- Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
- Field replaceable without full valve disassembly
- Interlocking body and seat prevents wash-out or blow-out
- Fully isolated solid type 316L stainless steel stem
- Standard valve accepts field-installable lug inserts set option
- Pressure rated to 150 psi at 73 deg F including dead-end service
- FKM O-ring
