Spears® 2421-020W Single Entry Ball Valve, 2 in Nominal, FNPT End Style, PVC Body, EPDM Softgoods, Domestic
CBPN:237032
UPC:054211512333
MPN:2421-020W
Price:
$120.72 / EA
DESCRIPTION

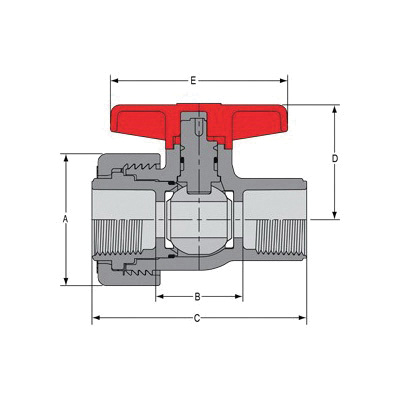

Spears® Ball Valve, Single Entry, 2 in Nominal, FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 5-1/2 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, PVC Body, PVC Stem Trim, EPDM, White, Domestic
This quarter-turn shut-off valve is widely chosen for heavy duty use in industrial and chemical, turf and irrigation, and pool and spa applications. Available in IPS sizes 1/2 in through 4 in with choice of socket or threaded end connectors.
Spears® 2421-020W Single Entry Ball Valve, 2 in Nominal, FNPT End Style, PVC Body, EPDM Softgoods, Domestic
CBPN:237032
MPN:2421-020W
UPC:054211512333
Price:
$120.72 / EA
DESCRIPTION
Spears® Ball Valve, Single Entry, 2 in Nominal, FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 5-1/2 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, PVC Body, PVC Stem Trim, EPDM, White, Domestic
This quarter-turn shut-off valve is widely chosen for heavy duty use in industrial and chemical, turf and irrigation, and pool and spa applications. Available in IPS sizes 1/2 in through 4 in with choice of socket or threaded end connectors.
Specifications
Brand: Spears®
Weight: 1.85 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 235 psi
Body Material: PVC
Softgoods Material: EPDM
Actuator Type: T-Handle
Ball Material: PVC
Color: White
Inlet to Outlet Length: 5-1/2 in
Manufacturer Name: Spears Manufacturing
Temperature Rating: 140 deg F
Top to Inlet Center: 3-3/4 in
Trim Material: PVC Stem
Type: Single Entry
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM Specified | NSF Approved
Item Features
- Heavy bodied PVC gray or white construction - Spears® single entry ball valves never rust, scale or pit, providing exceptional chemical and corrosion resistance
- Buttress threaded external adjustment nut - strong buttress type threads on adjustment nut allow higher pressure handling capability and quick external adjustment for seat wear compensation
- PTFE ball seats: Spears® PTFE floating seat design reduces seat wear for extended valve life smooth operation and bubble-tight shut-off, 100% factory tested
- Buna-N, EPDM or FKM O-Ring Options: choice of high grade, abrasion resistant Buna-N, EPDM or FKM O-Rings allows application specific selection for optimum chemical resistance
- High impact polypropylene handle: features double stop engagement and exhibits excellent resistance to most chemical environments
- Full SCH 80/XH bore - in full open position, full bore virtually eliminates pressure drop, providing optimum flow
- Suitable for vacuum service - Spears® true union ball valves are tested at 26 in Hg vacuum for 1 hr with less than 1 in Hg loss
- All single entry ball valves with Buna-N or EPDM O-Ring are NSF® certified for potable water use
- Fully repairable, non-blocked valve: Convenient seat and O-Ring replacement kits, for easy ordering, servicing and extended valve life requires system shutdown for service
- EPDM O-ring
