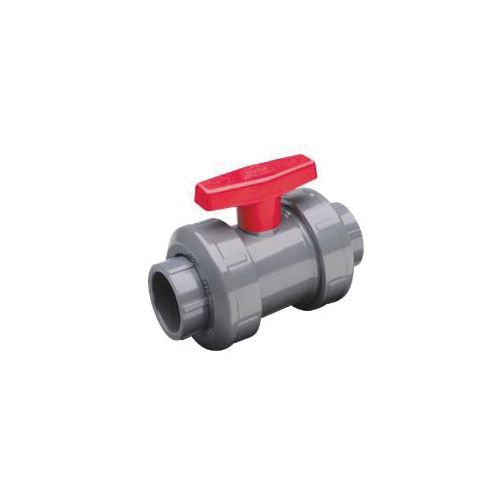

Spears® 2332-060 True Union Venturied Ball Valve, 6 in, Socket, PVC Body, FKM Softgoods, Domestic
CBPN:236984
UPC:054211506325
MPN:2332-060
DESCRIPTION
Spears® Ball Valve, Venturied, Series: True Union, 6 in Nominal, Socket, 150 psi, 73 deg F, PVC Ball, 26-1/16 in Inlet to Outlet Length, PVC Body, PTFE Seat Trim, FKM Softgoods, Gray, Domestic
The unique design features of this quarter-turn shut-off valve make it one of the most specified ball valves for industrial and chemical processing applications. Available in IPS sizes 1/2 in through 4 in with choice of socket, threaded or flanged end connectors, and 6 in (venturied 4 in valve) with choice of either socket or flanged end connectors. Also available in metric socket sizes 20 mm through 110 mm, and 1/2 in through 4 in BSP threads.
Spears® 2332-060 True Union Venturied Ball Valve, 6 in, Socket, PVC Body, FKM Softgoods, Domestic
CBPN:236984
MPN:2332-060
UPC:054211506325
DESCRIPTION
Spears® Ball Valve, Venturied, Series: True Union, 6 in Nominal, Socket, 150 psi, 73 deg F, PVC Ball, 26-1/16 in Inlet to Outlet Length, PVC Body, PTFE Seat Trim, FKM Softgoods, Gray, Domestic
The unique design features of this quarter-turn shut-off valve make it one of the most specified ball valves for industrial and chemical processing applications. Available in IPS sizes 1/2 in through 4 in with choice of socket, threaded or flanged end connectors, and 6 in (venturied 4 in valve) with choice of either socket or flanged end connectors. Also available in metric socket sizes 20 mm through 110 mm, and 1/2 in through 4 in BSP threads.
Specifications
Item Features
- Heavy bodied PVC construction - Spears® true union ball valves never rust, scale or pit, providing exceptional chemical and corrosion resistance
- Buttress threaded double union nuts - Strong buttress type threads on union nuts and seal carriers allow higher pressure handling capability and quick in-line installation and servicing
- Safe-T-Block seal carrier - Stops flow in either direction, allowing safe removal of the downstream union nut for system service or modification
- PTFE ball seats - Spears® PTFE floating seat design reduces seat wear for extended valve life, smooth operation, and bubble-tight shutoff, 100% factory tested
- High impact polypropylene handle: Features double stop engagement and exhibits excellent resistance to most chemical environments
- Safe-T-Shear® stem: Developed to help prevent line fluids from leaking out in the event of ball valve stem damage, engineered for high strength, the stem incorporates a special shear point to control accidental breakage, over torqueing breaks occur above the stem O-Ring leaving the seal intact until repair or replacement can be made
- Full SCH 80/XH bore - in full open position, full bore virtually eliminates pressure drop, providing optimum flow
- Fully repairable - Convenient Seat and O-Ring replacement kits or full cartridge replacement kits for easy ordering, servicing and extended valve life
- NSF listed for potable water: All True Union ball valves are NSF certified for potable water use
- FKM O-ring
