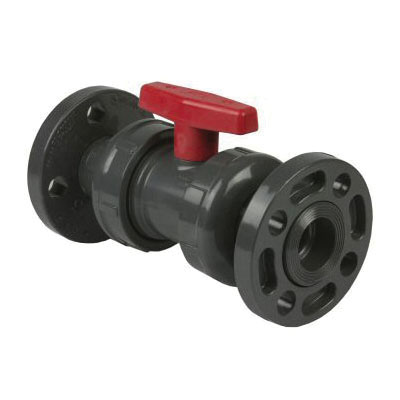

Spears® 2323-030 True Union Regular Style Ball Valve, 3 in Nominal, Flanged End Style, PVC Body, EPDM Softgoods, Domestic
CBPN:260596
UPC:054211506479
MPN:2323-030
DESCRIPTION
Spears® Ball Valve, Regular Style, Series: True Union, 3 in Nominal, Flanged, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 4-29/32 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
This versatile, quarter-turn shut-off valve is well suited for industrial and chemical processing applications. Available in IPS Sizes 1/2 to 4 in with socket, threaded or flanged end connectors. 6 in Ventured valve (4 in valve with 4 x 6 adapter) available with either socket or flanged end connection. Also available with metric 20mm - 110mm or 1/2 to 4 in BSP threaded end connectors.
Spears® 2323-030 True Union Regular Style Ball Valve, 3 in Nominal, Flanged End Style, PVC Body, EPDM Softgoods, Domestic
CBPN:260596
MPN:2323-030
UPC:054211506479
DESCRIPTION
Spears® Ball Valve, Regular Style, Series: True Union, 3 in Nominal, Flanged, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 4-29/32 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
This versatile, quarter-turn shut-off valve is well suited for industrial and chemical processing applications. Available in IPS Sizes 1/2 to 4 in with socket, threaded or flanged end connectors. 6 in Ventured valve (4 in valve with 4 x 6 adapter) available with either socket or flanged end connection. Also available with metric 20mm - 110mm or 1/2 to 4 in BSP threaded end connectors.
Specifications
Item Features
- Chemical and corrosion resistant PVC or CPVC construction
- SCH 80/XH full bore design
- Strong, buttress thread union nuts
- Fully Serviceable, replaceable Components
- Spears® Safe-T-Blocked® seal Carrier
- Self adjusting PTFE Floating seat Design
- High impact polypropylene handle
- Spears® Safe-T-Shear® stem design
- EPDM valves NSF® certified for potable water use
- Suitable for vacuum service
- Assembled with silicone-free, water soluble lubricant
- EPDM O-ring
