Spears® 2131-015C Compact Regular Ball Valve, 1-1/2 in Nominal, FNPT End Style, CPVC Body, FKM Softgoods, Domestic
CBPN:218901
UPC:054211500644
MPN:2131-015C
Price:
$203.85 / EA
DESCRIPTION
Spears® Regular Ball Valve, Compact, 1-1/2 in Nominal, FNPT, 235 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 5-5/8 in Inlet to Outlet Length, 3-11/16 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, FKM, Gray, Domestic
This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.
Spears® 2131-015C Compact Regular Ball Valve, 1-1/2 in Nominal, FNPT End Style, CPVC Body, FKM Softgoods, Domestic
CBPN:218901
MPN:2131-015C
UPC:054211500644
Price:
$203.85 / EA
DESCRIPTION
Spears® Regular Ball Valve, Compact, 1-1/2 in Nominal, FNPT, 235 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 5-5/8 in Inlet to Outlet Length, 3-11/16 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, FKM, Gray, Domestic
This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.
Specifications
Brand: Spears®
Weight: 1.41 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 235 psi
Body Material: CPVC
Softgoods Material: FKM
Actuator Type: T-Handle
Ball Material: CPVC
Color: Gray

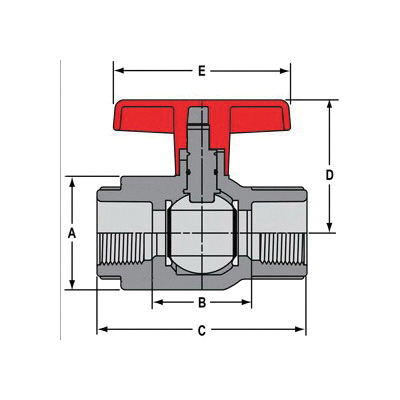

Inlet to Outlet Length: 5-5/8 in
Manufacturer Name: Spears Manufacturing
Temperature Rating: 200 deg F
Top to Inlet Center: 3-11/16 in
Trim Material: CPVC Stem and PTFE Seat
Type: Compact
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM F1970 | NSF Approved
Item Features
- Heavy bodied PVC or CPVC construction
- High impact polypropylene handle
- Full SCH 80/XH bore
- Safe-T-Shear® stem
- FKM O-ring
