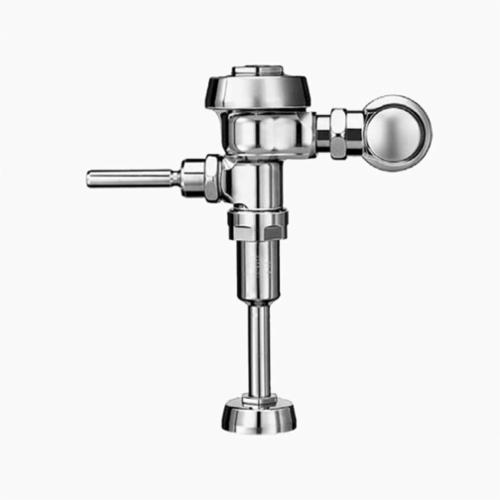

Sloan® Royal® 3912697 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:144253
UPC:671254130579
MPN:3912697
Price:
$213.31 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Sloan® Royal® 3912697 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:144253
MPN:3912697
UPC:671254130579
Price:
$213.31 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Specifications
Brand: Sloan®
Weight: 6.56 lbs
Flush Rate: 0.5 gpf
Inlet Size: 3/4 in IPS
Spud Coupling: 3/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Handle Type: Non-Hold Open Oscillating
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Series: 186
Type: Single-Flush
Valve Design: Diaphragm
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASSE 1037 | ASTM Specified | BAA Compliant | cUPC Listed
Item Features
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed urinal flushometer, for 3/4 in top spud urinals
