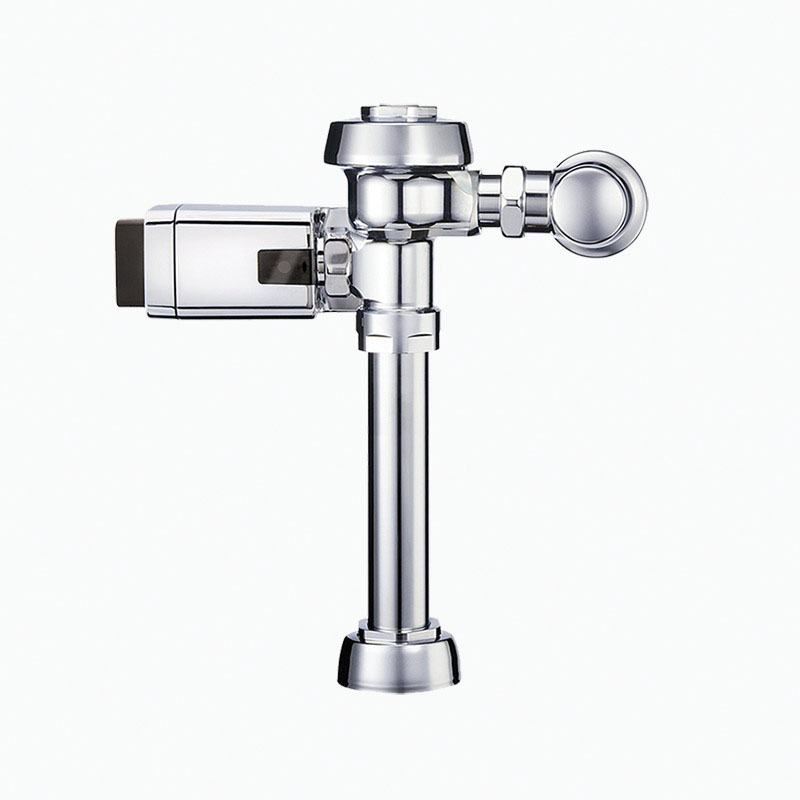

Sloan® Royal® 3910288 111 Single-Flush Sensor Exposed Flushometer, Optima®, Battery, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:241243
UPC:671254417977
MPN:3910288
Price:
$563.80 / EA
DESCRIPTION
Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 111, Optima® Collection, Water Closet/Urinal Fixture, Battery Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, AC-powered, sensor-activated, water closet flushometer with a single-flush side mount unit for top spud floor mounted or wall hung bowls.
Sloan® Royal® 3910288 111 Single-Flush Sensor Exposed Flushometer, Optima®, Battery, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:241243
MPN:3910288
UPC:671254417977
Price:
$563.80 / EA
DESCRIPTION
Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 111, Optima® Collection, Water Closet/Urinal Fixture, Battery Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, AC-powered, sensor-activated, water closet flushometer with a single-flush side mount unit for top spud floor mounted or wall hung bowls.
Specifications
Brand: Sloan®
Weight: 10.25 lbs
Collection: Optima®
Power Source: Battery
Flush Rate: 1.28 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet/Urinal
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 22 to 42 in
Series: 111
Type: Single-Flush
Valve Design: Diaphragm
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE Valve | ADA Compliant | BAA Compliant | cUPC Listed | cUPC Green Certified | UL Listed | Satisfies LEED Credits | WaterSense Listed
Item Features
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
- All organic rubber has been replaced with synthetic compounds
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
