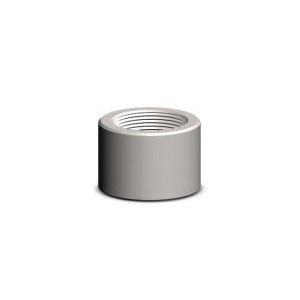

Penn MACHINE 5000301001 03010 Cap, 3 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN:34949
MPN:5000301001
Price:
$109.87 / EA
DESCRIPTION
Penn MACHINE Cap, Series: 03010, Fitting/Connector Type: Cap, 3 in Nominal, FNPT, 2.563 in Length, SCH 160, 3000 lb, Forged, Carbon Steel, 4-1/4 in OD
Penn MACHINE 5000301001 03010 Cap, 3 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN:34949
MPN:5000301001
Price:
$109.87 / EA
DESCRIPTION
Penn MACHINE Cap, Series: 03010, Fitting/Connector Type: Cap, 3 in Nominal, FNPT, 2.563 in Length, SCH 160, 3000 lb, Forged, Carbon Steel, 4-1/4 in OD
Specifications
Brand: Penn MACHINE
Weight: 6.38 lbs
Fitting/Connector Type: Cap
Nominal Size: 3 in
End Style: FNPT
Pressure Class: 3000 lb
Material: Carbon Steel
Dimensions: 4-1/4 in OD
Length: 2.563 in
Manufacturer Name: Pennsylvania Machine Works
Method of Manufacture: Forged
Schedule Rating: SCH 160
Series: 03010
Standards and Approvals: ANSI/ASME B1.20.1-1983 | ASME B16.11 | ASTM A105 | PED Certified Canadian Registered in all provinces
Item Features
- 1.016 in L thread screwed into fitting
