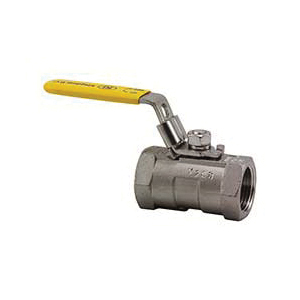

Merit Brass KV108-24 K Series 1-Piece KI-Pattern Hex Ball Valve With Handle, 1-1/2 in, 1000 lb, 316 Stainless Steel Body, Reduced Port, PTFE Softgoods, Import
CBPN:277613
UPC:671404122195
MPN:KV108-24
Price:
$72.29 / EA
DESCRIPTION
Merit Brass Hex Ball Valve, 1-Piece KI-Pattern, Series: K Series, 1-1/2 in Nominal, 1000 lb, Reduced Port, Media: Gas/Oil/Water, 0.98 in Orifice, 316 Stainless Steel Ball, 3.35 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, PTFE Softgoods, Import
Merit Brass KV108-24 K Series 1-Piece KI-Pattern Hex Ball Valve With Handle, 1-1/2 in, 1000 lb, 316 Stainless Steel Body, Reduced Port, PTFE Softgoods, Import
CBPN:277613
MPN:KV108-24
UPC:671404122195
Price:
$72.29 / EA
DESCRIPTION
Merit Brass Hex Ball Valve, 1-Piece KI-Pattern, Series: K Series, 1-1/2 in Nominal, 1000 lb, Reduced Port, Media: Gas/Oil/Water, 0.98 in Orifice, 316 Stainless Steel Ball, 3.35 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, PTFE Softgoods, Import
Specifications
Brand: Merit Brass
Weight: 1.896 lbs
Nominal Size: 1-1/2 in
Pressure Class: 1000 lb
Body Material: 316 Stainless Steel
Port Type: Reduced
Softgoods Material: PTFE
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.35 in
Manufacturer Name: Merit Brass
Media: Gas/Oil/Water
Orifice Size: 0.98 in
Series: K Series
Top to Inlet Center: 2.6 in
Trim Material: 316 Stainless Steel Stem
Type: 1-Piece KI-Pattern
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASME B16.34/MSS SP-110 Design | ASME B1.20.1 Pipe Thread | EN 12516-3 Wall Thickness | MSS SP-110 Inspection and Testing | Castings approved by TUV AD 2000-Merkblatt W0
Item Features
- Blow-out proof stem
- Pressure balance hole ball slot
- PTFE thrust washer/body gasket
