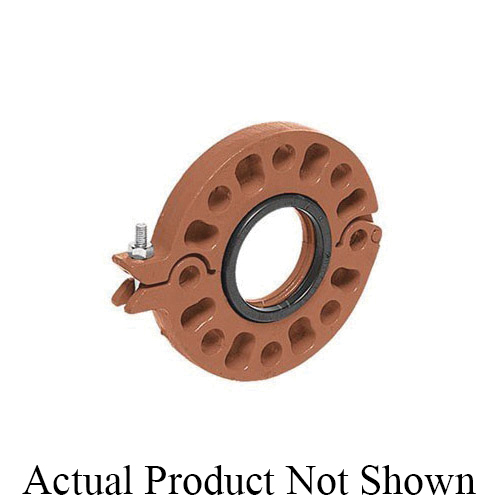

Gruvlok® 0390215002 FIG 7013 Coupling Flange With Nitrile Gasket, 2 in Nominal, Grooved End Style, 300 lb, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:294837
UPC:690291391040
MPN:0390215002
DESCRIPTION
Gruvlok® Coupling Flange, Series: FIG 7013, Fitting/Connector Type: Flange, 2 in Nominal, Grooved, 8 in Length, 300 lb, 750 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 2-3/8 in OD x 1 in D, Domestic
The Gruvlok® FIG 7013 300# Flange allows direct connection of Class 250 or Class 300 flanged components to a Gruvlok® piping system. The two halves of the 2 in thru 12 in sizes of both Gruvlok® Flanges are drawn together by a latch bolt which eases assembly on the pipe. A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face. Gruvlok® Flanges have designed-in anti-rotation tines which bite into and grip the side of the pipe groove to provide a secure, rigid connection. Gruvlok® flange adapter insert required when mating to rubber surfaces or serrated faced mating flanges.
Gruvlok® 0390215002 FIG 7013 Coupling Flange With Nitrile Gasket, 2 in Nominal, Grooved End Style, 300 lb, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:294837
MPN:0390215002
UPC:690291391040
DESCRIPTION
Gruvlok® Coupling Flange, Series: FIG 7013, Fitting/Connector Type: Flange, 2 in Nominal, Grooved, 8 in Length, 300 lb, 750 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 2-3/8 in OD x 1 in D, Domestic
The Gruvlok® FIG 7013 300# Flange allows direct connection of Class 250 or Class 300 flanged components to a Gruvlok® piping system. The two halves of the 2 in thru 12 in sizes of both Gruvlok® Flanges are drawn together by a latch bolt which eases assembly on the pipe. A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face. Gruvlok® Flanges have designed-in anti-rotation tines which bite into and grip the side of the pipe groove to provide a secure, rigid connection. Gruvlok® flange adapter insert required when mating to rubber surfaces or serrated faced mating flanges.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- The Gruvlok® FIG 7013 adapter flange should not be used with the FIG 78FP or FIG 7800 check valve
- Air with oil vapors and vegetable and mineral oils
- Recommended for petroleum applications
- Not for use in hot water or hot air
