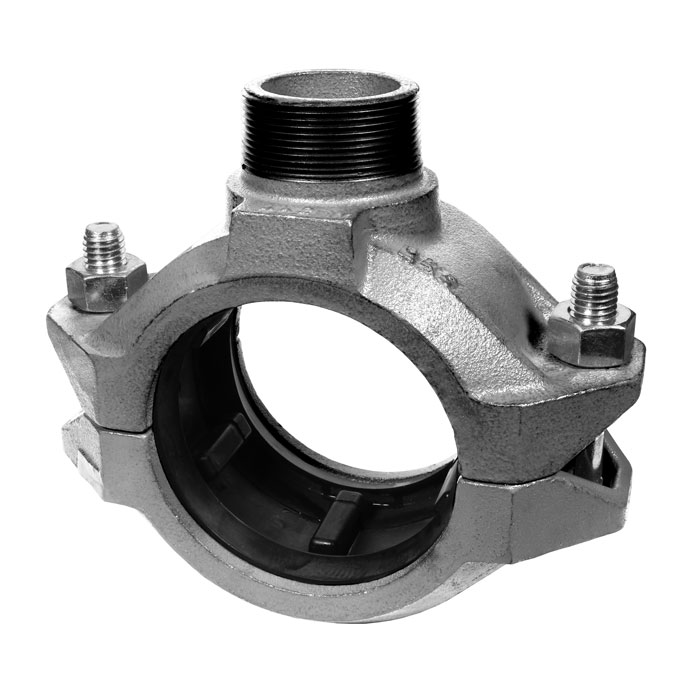

Gruvlok® Branch Outlet Coupling, Series: FIG 7042, 3 x 1 in Nominal, MNPT, 500 psi, -40 to 150 deg F, 1/2 x 3 in Bolt, 304 Stainless Steel Bolt, Ductile Iron Clamp, Grade E Gasket, 7-1/4 in W x 3-1/4 in D, Galvanized, Import

The Gruvlok® FIG 7042 Outlet Coupling is designed to join two sections of grooved end pipe and form a reducing outlet connection. The outlet couplings are available for the 1-1/2 in through 6 in IPS or ISO run pipe sizes with the outlet pipe sizes ranging from 1/2 in through 2 in. The gaskets are available in EPDM and Nitrile to suit a wide range of applications. The gasket design is a unique pressure responsive design that provides a higher sealing force as pressure is increased. The outlet gasket seal is reinforced by a steel ring and is mated to a machined housing surface to assure a leak-tight outlet seal. Center ribs inside the gasket ease positioning of the pipe during installation and provide additional support to the gasket. The outlet couplings are NOT recommended for vacuum applications or for use with bevelled end pipe.
