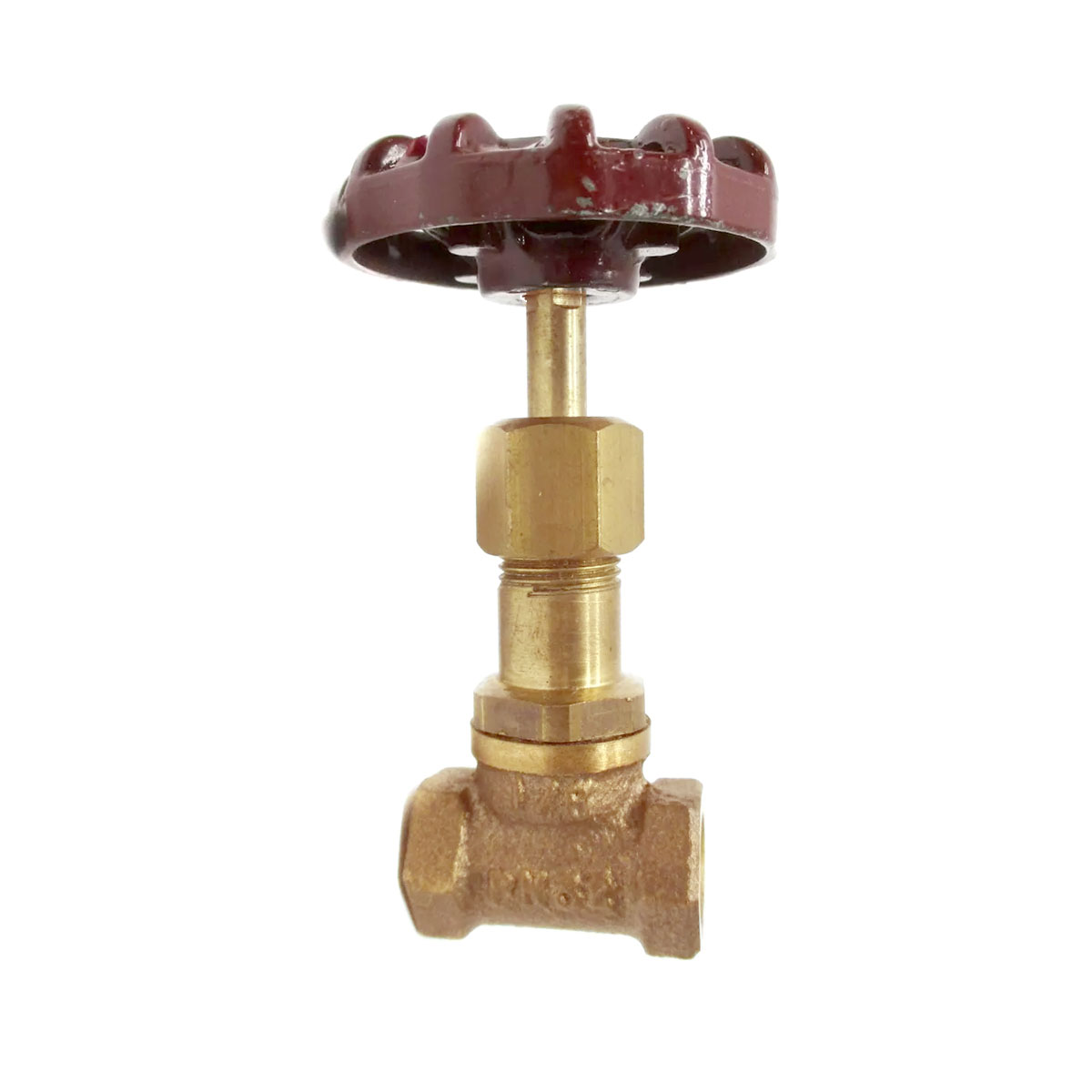

CRANE® 88-1/2 88 Series Globe Valve, 1/2 in Nominal, Thread End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:34031
MPN:88-1/2
Price:
$363.57 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 88 Series, 1/2 in Nominal, Thread End Style, 200 lb Pressure Class, Handwheel Actuator, 2.01 in Inlet to Outlet Length, 3.58 in Top to Inlet Center, Bronze Body, Silicon Aluminum Bronze Trim, Graphite Asbestos Free Packing Softgoods, 2.05 in Diameter Hand Wheel
CRANE® 88-1/2 88 Series Globe Valve, 1/2 in Nominal, Thread End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:34031
MPN:88-1/2
Price:
$363.57 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 88 Series, 1/2 in Nominal, Thread End Style, 200 lb Pressure Class, Handwheel Actuator, 2.01 in Inlet to Outlet Length, 3.58 in Top to Inlet Center, Bronze Body, Silicon Aluminum Bronze Trim, Graphite Asbestos Free Packing Softgoods, 2.05 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 0.64 lbs
Nominal Size: 1/2 in
End Style: Thread
Pressure Class: 200 lb
Body Material: Bronze
Actuator Type: Handwheel
Hand Wheel Diameter: 2.05 in
Inlet to Outlet Length: 2.01 in
Manufacturer Name: Crane ChemPharma Energy
Series: 88 Series
Softgoods Material: Graphite Asbestos Free Packing
Top to Inlet Center: 3.58 in
Trim Material: Silicon Aluminum Bronze
Standards and Approvals: ASTM B62 C83600 Body | ASTM BSEN12163 CW301G Stem/Bonnet | MSS SP-80 | Type 1
Item Features
- Full pressure class offering: Class 125, Class 150, class 200, Class 300, 200 CWP and 300 CWP
- Wide option range seat, disc, trims, and connection type
- Threaded bonnets
- Needle type disc
