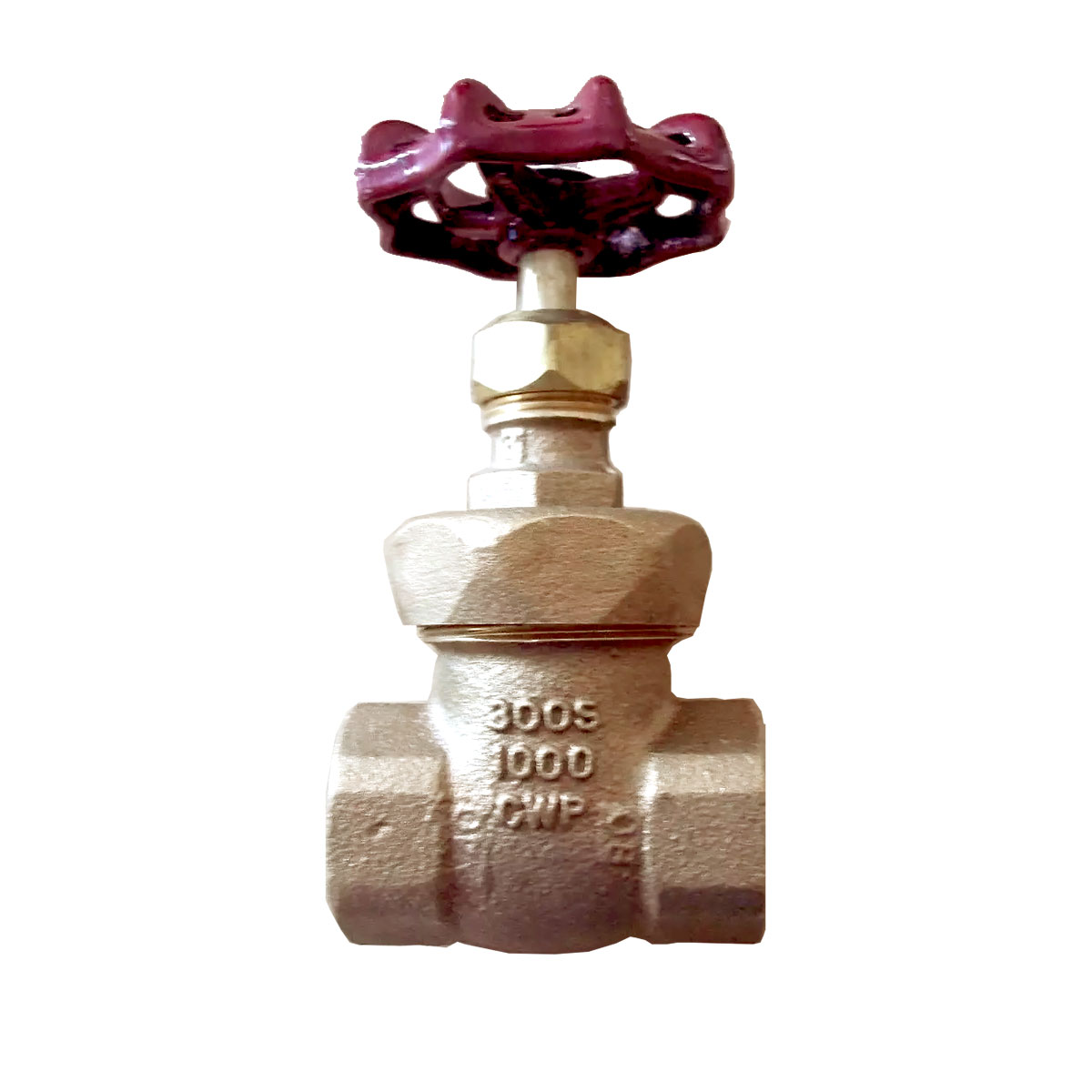

CRANE® 636E-1 636-E Gate Valve, 1 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator
CBPN:117168
MPN:636E-1
Price:
$1917.49 / EA
DESCRIPTION
CRANE® Gate Valve, Series: 636-E, 1 in Nominal, FNPT End Style, 1000 psi Pressure, 300 lb Pressure Class, -20 to 150 deg F, Handwheel Actuator, 3.06 in Inlet to Outlet Length, 4.89 in Top to Inlet Center, Bronze Body, Bronze Trim, Carboform Packing Softgoods, 2-3/4 in Diameter Hand Wheel
CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.
CRANE® 636E-1 636-E Gate Valve, 1 in Nominal, FNPT End Style, 300 lb, Bronze Body, Handwheel Actuator
CBPN:117168
MPN:636E-1
Price:
$1917.49 / EA
DESCRIPTION
CRANE® Gate Valve, Series: 636-E, 1 in Nominal, FNPT End Style, 1000 psi Pressure, 300 lb Pressure Class, -20 to 150 deg F, Handwheel Actuator, 3.06 in Inlet to Outlet Length, 4.89 in Top to Inlet Center, Bronze Body, Bronze Trim, Carboform Packing Softgoods, 2-3/4 in Diameter Hand Wheel
CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.
Specifications
Brand: CRANE®
Weight: 2.95 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 300 lb
Body Material: Bronze
Softgoods Material: Carboform Packing
Actuator Type: Handwheel
Hand Wheel Diameter: 2-3/4 in
Inlet to Outlet Length: 3.06 in
Manufacturer Name: Crane ChemPharma Energy
Pressure Rating: 1000 psi
Series: 636-E
Temperature Rating: -20 to 150 deg F
Top to Inlet Center: 4.89 in
Trim Material: Bronze
Standards and Approvals: ASTM B-61 C92200 Body | ASTM B-371 C69400 Stem | MSS SP-80 Type 1
Item Features
- Union Bonnet
- Non-rising stem
- Highly specified and proven performer for commercial and industrial piping application
- Wide option range seat, disc, trims, and connection type
