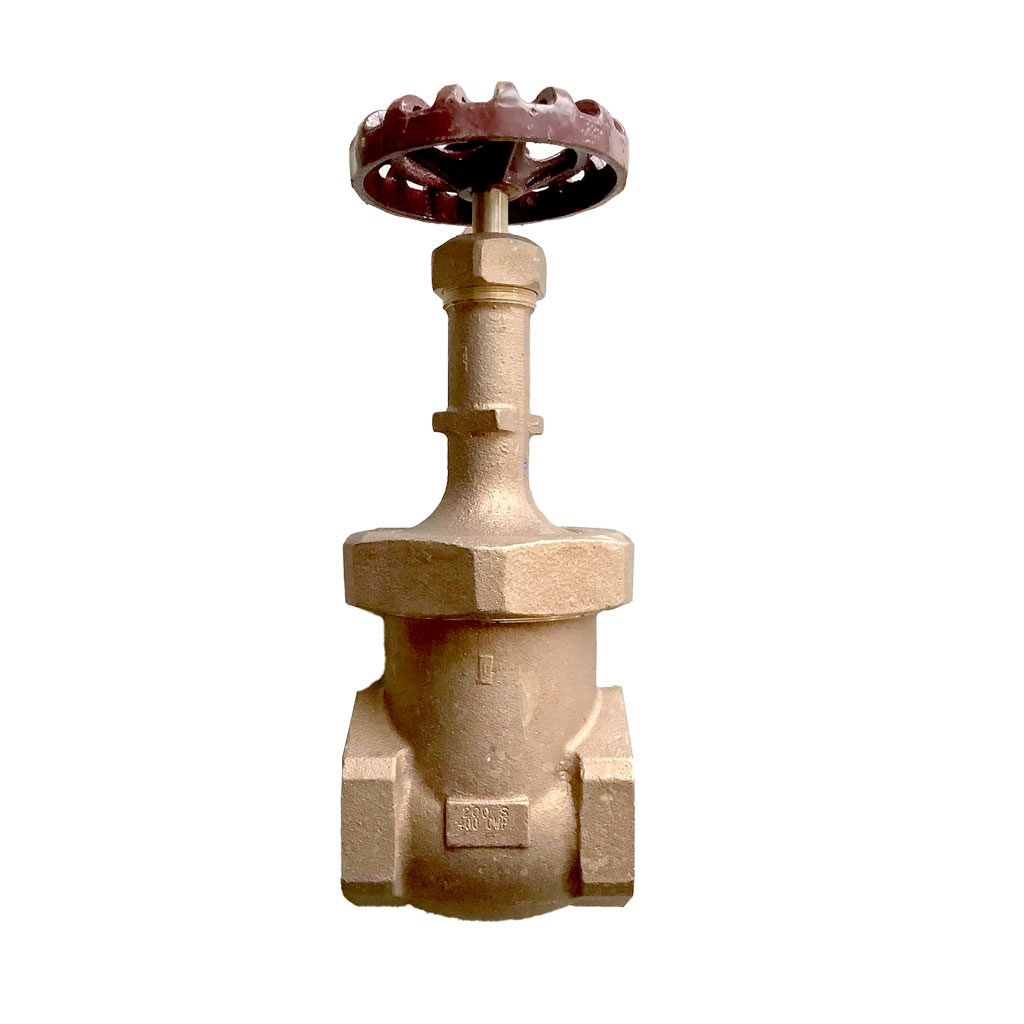

CRANE® 424-1 Gate Valve, 1 in Nominal, FNPT End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:74171
MPN:424-1
Price:
$646.30 / EA
DESCRIPTION
CRANE® Gate Valve, Series: 424, 1 in Nominal, FNPT End Style, 200 lb Pressure Class, Handwheel Actuator, 3.06 in Inlet to Outlet Length, 7.6 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Asbestos Free Packing Softgoods, 2.76 in Diameter Hand Wheel
CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.
CRANE® 424-1 Gate Valve, 1 in Nominal, FNPT End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:74171
MPN:424-1
Price:
$646.30 / EA
DESCRIPTION
CRANE® Gate Valve, Series: 424, 1 in Nominal, FNPT End Style, 200 lb Pressure Class, Handwheel Actuator, 3.06 in Inlet to Outlet Length, 7.6 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Asbestos Free Packing Softgoods, 2.76 in Diameter Hand Wheel
CRANE® bronze gate valves have stood up to commercial and industrial services for more than a century.
Specifications
Brand: CRANE®
Weight: 3.23 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 200 lb
Body Material: Bronze
Softgoods Material: Graphite Asbestos Free Packing
Actuator Type: Handwheel
Hand Wheel Diameter: 2.76 in
Inlet to Outlet Length: 3.06 in
Manufacturer Name: Crane ChemPharma Energy
Series: 424
Top to Inlet Center: 7.6 in
Trim Material: Bronze
Standards and Approvals: ASTM B61 C92200 Body | ASTM B371 C69400 Stem | MSS SP-80 Type 2
Item Features
- Union bonnets
- Rising stem
- Highly specified and proven performer for commercial and industrial piping application
- Wide option range seat, disc, trims, and connection type
