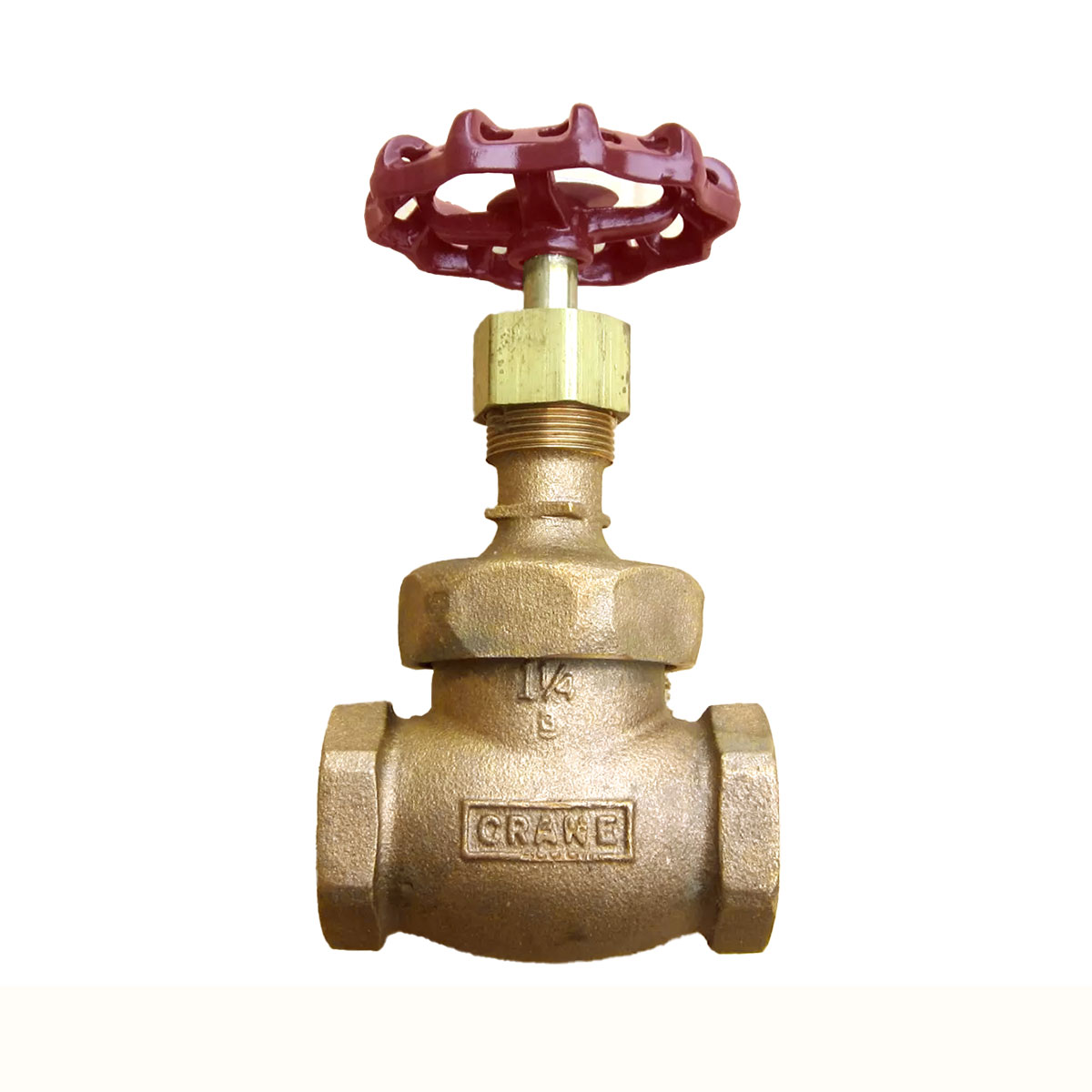

CRANE® 212P-1-1/2 212-P Globe Valve, 1-1/2 in Nominal, Thread End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:214798
MPN:212P-1-1/2
Price:
$2592.65 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 212-P, 1-1/2 in Nominal, Thread End Style, 200 lb Pressure Class, Handwheel Actuator, 4.76 in Inlet to Outlet Length, 8.66 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing Softgoods, 4.06 in Diameter Hand Wheel
CRANE® 212P-1-1/2 212-P Globe Valve, 1-1/2 in Nominal, Thread End Style, 200 lb, Bronze Body, Handwheel Actuator
CBPN:214798
MPN:212P-1-1/2
Price:
$2592.65 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 212-P, 1-1/2 in Nominal, Thread End Style, 200 lb Pressure Class, Handwheel Actuator, 4.76 in Inlet to Outlet Length, 8.66 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing Softgoods, 4.06 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 8.34 lbs
Nominal Size: 1-1/2 in
End Style: Thread
Pressure Class: 200 lb
Body Material: Bronze
Actuator Type: Handwheel
Hand Wheel Diameter: 4.06 in
Inlet to Outlet Length: 4.76 in
Manufacturer Name: Crane ChemPharma Energy
Series: 212-P
Softgoods Material: Synthetic Glass Fiber with Nitrile Binder Gasket/Graphite Asbestos-Free Packing
Top to Inlet Center: 8.66 in
Trim Material: Copper Silicon Bronze
Standards and Approvals: ASTM A-197 F22000 Handwheel | ASTM B-61 C92200 Body/Bonnet | ASTM B-371 C69400 Stem | MSS SP-80 Type 3
Item Features
- Stainless steel plug type disc
- Union bonnets
- Malleable iron handwheel
