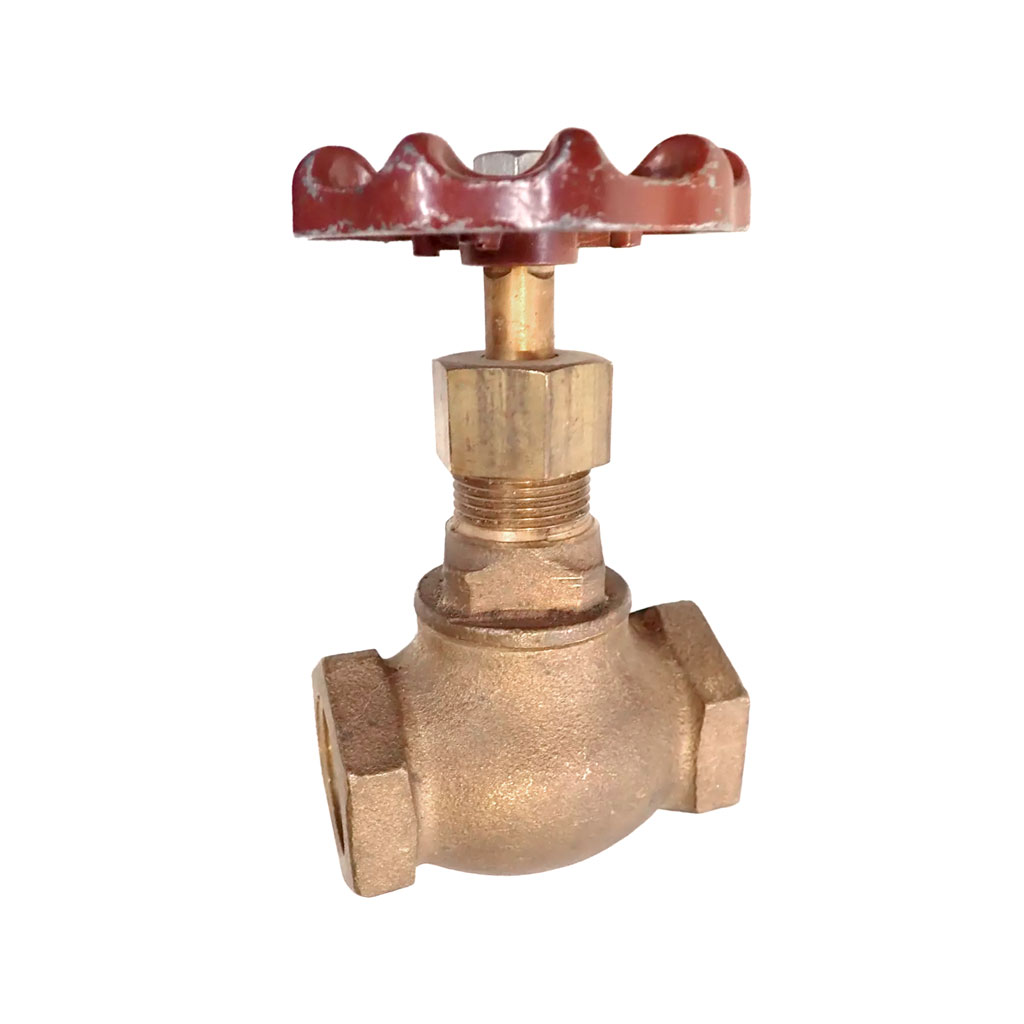

CRANE® 1-1 1 Series Globe Valve, 1 in Nominal, Thread End Style, 125 lb, Bronze Body, Handwheel Actuator
CBPN:11841
MPN:1-1
Price:
$433.83 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 1 Series, 1 in Nominal, Thread End Style, 125 lb Pressure Class, Handwheel Actuator, 3.54 in Inlet to Outlet Length, 4.92 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Synthetic Glass Fiber with Nitrile Filled Gasket/Graphite Asbestos-Free Packing Softgoods, 2.76 in Diameter Hand Wheel
CRANE® 1-1 1 Series Globe Valve, 1 in Nominal, Thread End Style, 125 lb, Bronze Body, Handwheel Actuator
CBPN:11841
MPN:1-1
Price:
$433.83 / EA
DESCRIPTION
CRANE® Globe Valve, Series: 1 Series, 1 in Nominal, Thread End Style, 125 lb Pressure Class, Handwheel Actuator, 3.54 in Inlet to Outlet Length, 4.92 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Synthetic Glass Fiber with Nitrile Filled Gasket/Graphite Asbestos-Free Packing Softgoods, 2.76 in Diameter Hand Wheel
Specifications
Brand: CRANE®
Weight: 1.98 lbs
Nominal Size: 1 in
End Style: Thread
Pressure Class: 125 lb
Body Material: Bronze
Actuator Type: Handwheel
Hand Wheel Diameter: 2.76 in
Inlet to Outlet Length: 3.54 in
Manufacturer Name: Crane ChemPharma Energy
Series: 1 Series
Softgoods Material: Synthetic Glass Fiber with Nitrile Filled Gasket/Graphite Asbestos-Free Packing
Top to Inlet Center: 4.92 in
Trim Material: Copper Silicon Bronze
Standards and Approvals: ASTM B62 C83600 Body/Bonnet | ASTM B62 C83600 Disc | ASTM B371 C69400 Stem | MSS SP-80 | Type 1
Item Features
- Full pressure class offering: Class 125, Class 150, class 200, Class 300, 200 CWP and 300 CWP
- Wide option range seat, disc, trims, and connection type
- Threaded bonnets
- Bronze disc
