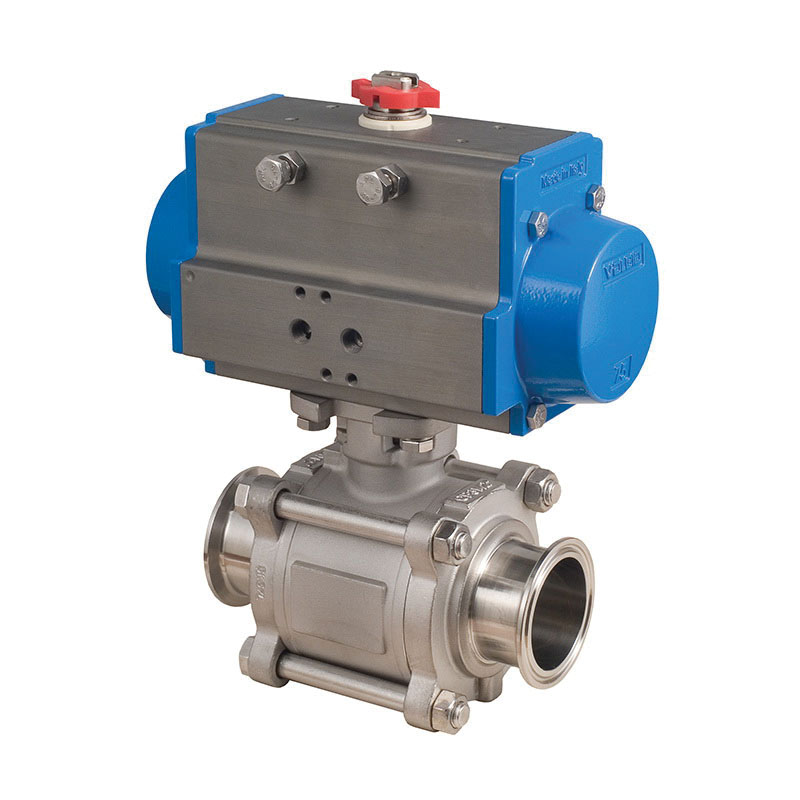

Bonomi North America Ball Valve Package, 2-Way 3-Piece Direct Mount, Series: 770, 1-1/2 in Nominal, Sanitary Tri-Clamp, 800 psi WOG, -20 to 450 deg F, Full Port, 1.37 in Orifice, Pneumatic Spring Return Actuator, 316L Stainless Steel Ball, 4.7 in Inlet to Outlet Length, 8.76 in Top to Inlet Center, 316 Stainless Steel Body, 316L Stainless Steel/PTFE/Vinyl Trim, PTFE + Glass/RTFE, 9.47 in L x 4.17 in W x 9.45 in H, Import

The Bonomi 8P0772 series pneumatic actuated packages feature the 770 [non-cavity filled] and the 771 [cavity filled] three-piece full port stainless steel ball valves with sanitary connections. Both valve series are ISO 5211 direct mount, and come with a grounded ball and stem, and a Ra 15 finish. A grounded ball and stem is standard. The Valbia pneumatic actuator comes with a hard-anodized aluminum body and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
