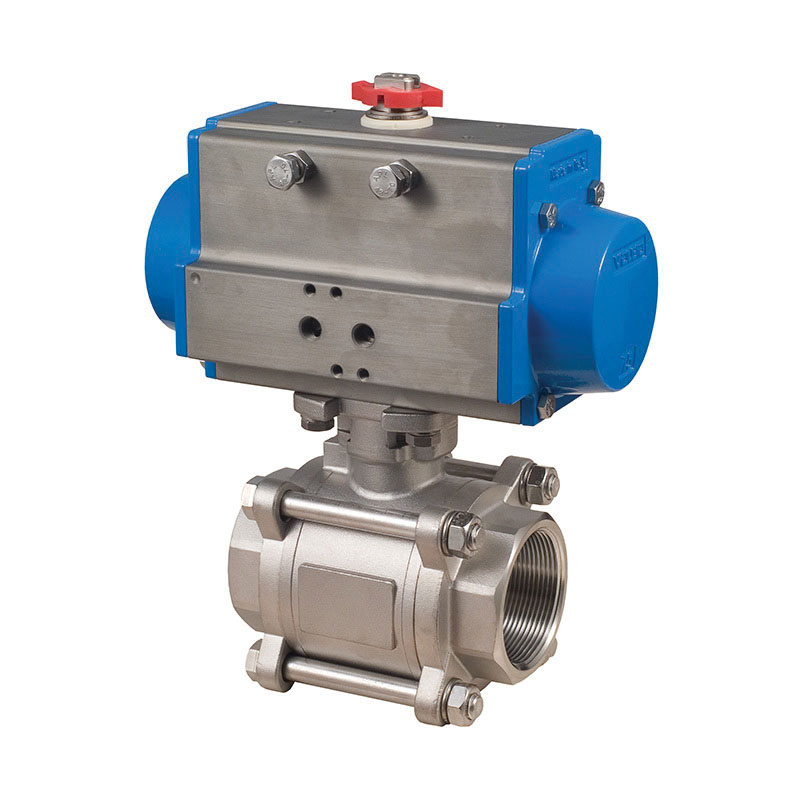

Bonomi North America Ball Valve Package, 2-Way 3-Piece Direct Mount, Series: 720LL, 3 in Nominal, FNPT, 800 psi/150 psi Steam, -60 to 440 deg F, Full Port, Media: Steam, 3.15 in Orifice, Pneumatic Spring Return Actuator, 316 Stainless Steel Ball, 7.19 in Inlet to Outlet Length, 12.68 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/1600 TFM/Vinyl Trim, FKM/PTFE/RTFE/1600 TFM, 14.65 in L x 5.83 in W x 14.22 in H, Import

The 8P0721 pneumatic actuated packages include an ISO 5211, complete direct mount ASTM A351-CF8M stainless steel full port ball valve 720LL [NPT], 721LL [socket weld], and 722LL [butt weld] with TFM-1600 seats, multiple stem packing, thermal relief hole in the stem slot, and a grounded ball and stem. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
