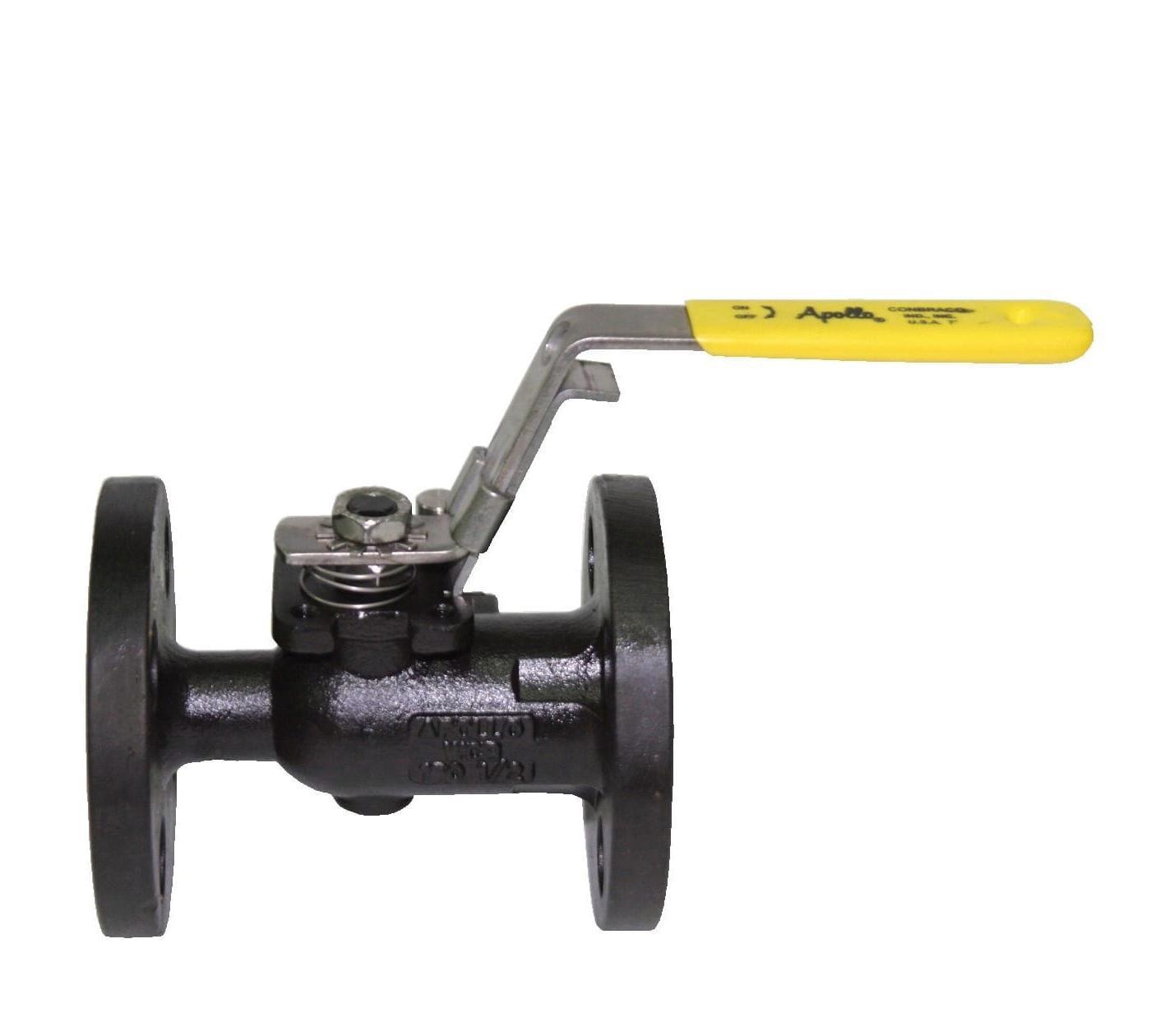

Apollo™ 88A24065 88A-240 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 150 lb, Wrought Carbon Steel Body, Full Port, Graphite/MPTFE Softgoods, Domestic
CBPN:246518
UPC:670750917608
MPN:88A-240-65
Price:
$1535.30 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A24065, Ball Valve, Series: 88A-240, 3 in Nominal, Raised Face Flanged End Style, 150 psi SWP Pressure, 150 lb Pressure Class, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 8 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel/PTFE Trim, Graphite/MPTFE Softgoods, Domestic
Apollo™ 88A24065 88A-240 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 150 lb, Wrought Carbon Steel Body, Full Port, Graphite/MPTFE Softgoods, Domestic
CBPN:246518
MPN:88A-240-65
UPC:670750917608
Price:
$1535.30 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A24065, Ball Valve, Series: 88A-240, 3 in Nominal, Raised Face Flanged End Style, 150 psi SWP Pressure, 150 lb Pressure Class, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 8 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel/PTFE Trim, Graphite/MPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 60 lbs
Nominal Size: 3 in
End Style: Raised Face Flanged
Pressure Class: 150 lb
Pressure Rating: 150 psi SWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: Graphite/MPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 8 in
Manufacturer Name: Apollo Conbraco
Series: 88A-240
Top to Inlet Center: 8.8 in
Trim Material: 316 Stainless Steel/PTFE
Application: Potable and Non-Potable Applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A216 WCB Body | MSS SP-25/SP-72 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device
- Chevron style adjustable stem seal
- Slot vented ball for thermal expansion
- Rated up to 150 psig saturated steam
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast boss for bleed/drain port
- Vacuum service to 29 in Hg
