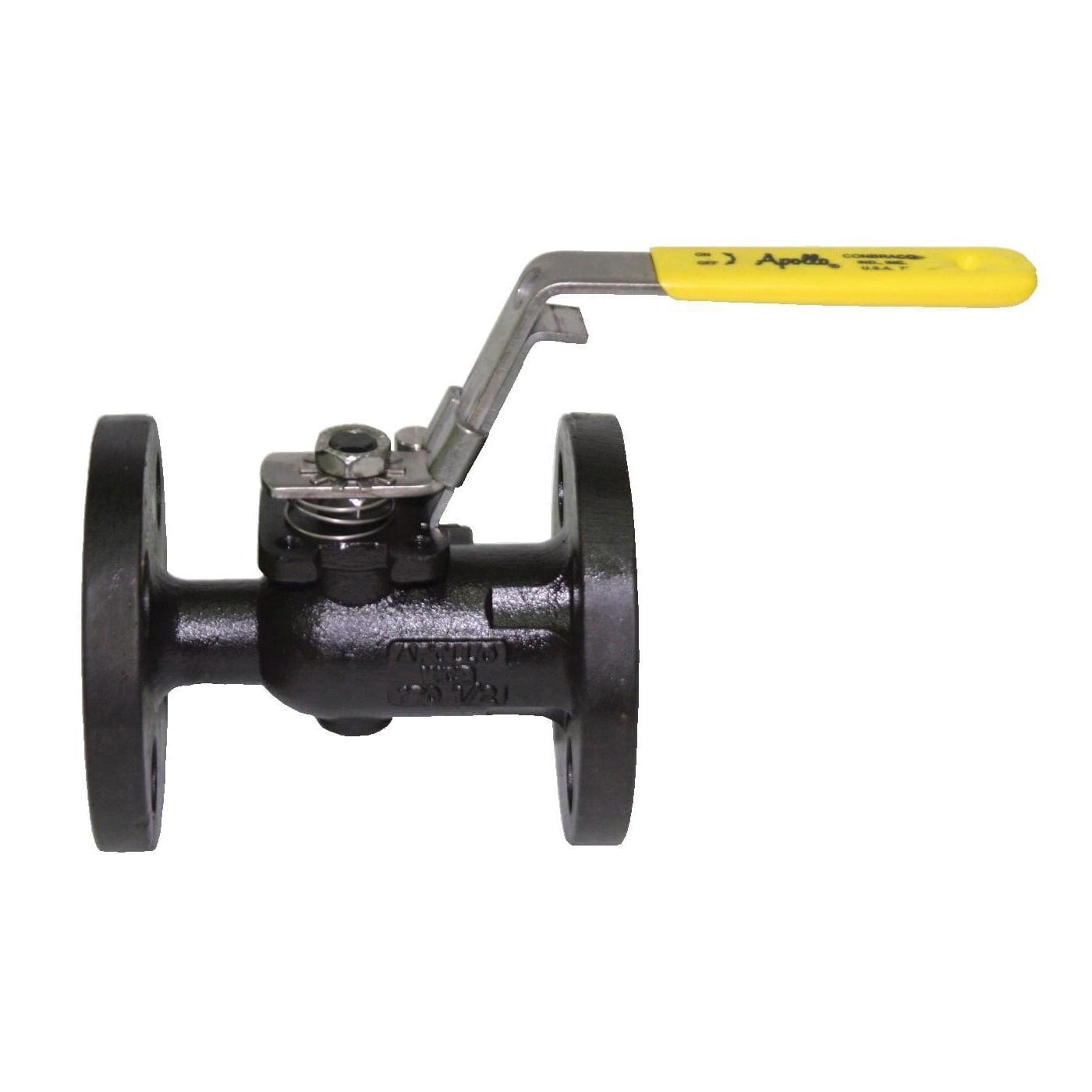

Apollo™ 88A-203-01A 88A-200 Series Ball Valve, 1/2 in Nominal, Raised Face Flanged End Style, 150 lb, Carbon Steel Body, Full Port, RPTFE Softgoods, Domestic
CBPN:240930
UPC:191988021153
MPN:88A-203-01A
Price:
$297.48 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A20301A, Ball Valve, Series: 88A-200, 1/2 in Nominal, Flanged End Style, 150 psi Pressure, 150 lb Pressure Class, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, Carbon Steel Ball, 4-1/4 in Inlet to Outlet Length, 2.74 in Top to Inlet Center, Polished Chrome Carbon Steel Stem/Stainless Steel Spring/TFM 1700 Seat Trim, RPTFE Softgoods, Domestic
Apollo™ 88A-203-01A 88A-200 Series Ball Valve, 1/2 in Nominal, Raised Face Flanged End Style, 150 lb, Carbon Steel Body, Full Port, RPTFE Softgoods, Domestic
CBPN:240930
MPN:88A-203-01A
UPC:191988021153
Price:
$297.48 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A20301A, Ball Valve, Series: 88A-200, 1/2 in Nominal, Flanged End Style, 150 psi Pressure, 150 lb Pressure Class, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, Carbon Steel Ball, 4-1/4 in Inlet to Outlet Length, 2.74 in Top to Inlet Center, Polished Chrome Carbon Steel Stem/Stainless Steel Spring/TFM 1700 Seat Trim, RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 3.35 lbs
Nominal Size: 1/2 in
End Style: Flanged
Pressure Class: 150 lb
Pressure Rating: 150 psi
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Lever Handle
Ball Material: Carbon Steel
Inlet to Outlet Length: 4-1/4 in
Manufacturer Name: Apollo Conbraco
Media: Water
Orifice Size: 1/2 in
Series: 88A-200
Top to Inlet Center: 2.74 in
Trim Material: Polished Chrome Carbon Steel Stem/Stainless Steel Spring/TFM 1700 Seat
Application: Industrial Applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.1/B16.33/B16.34/B16.38/B16.5/B31.1/B31.3/B31.8 | ASTM A08 Type 1215/A193 B7/A216 WCB/A313/A366 | CSA Certified | MSS SP-25 | MSS SP-61 | MSS SP-72 | NACE MR0175 (2000)/MR0103 (2003) | NSF 372 | NSF/ANSI 61 | SAE J429 Grade 2 | UL 125 | PROP65: Cancer and Reproductive Harm
Item Features
- Two-position locking device
- Chevron style adjustable stem seals
- Slot vented ball for thermal expansion
- Anti-static grounded ball and stem
- Vacuum service to 29 in Hg
- Cast boss for bleed/drain port
- Rated up to 150 psig saturated steam
- RPTFE seal
