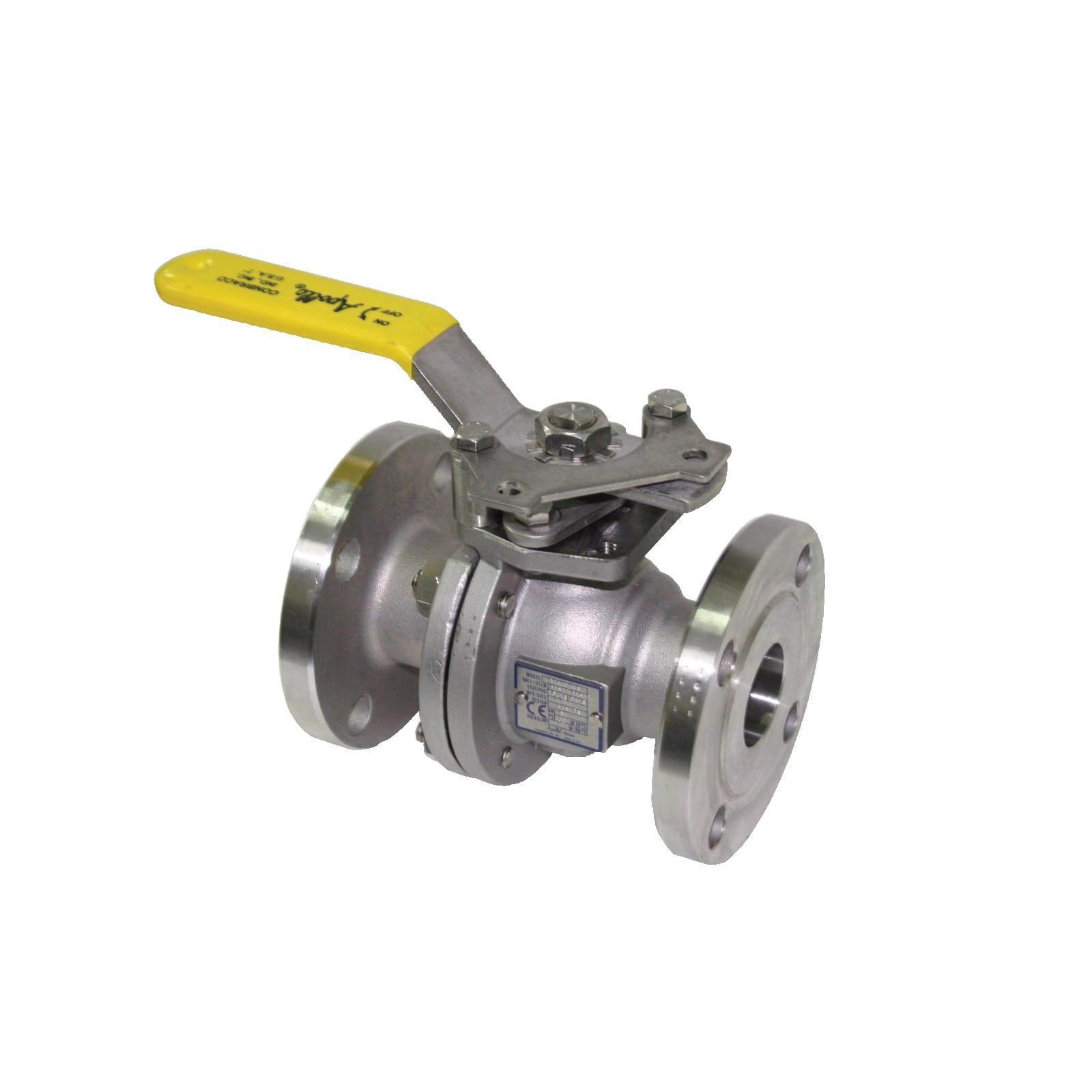

Apollo™ 87A-204-01A 87A-200 Ball Valve, 3/4 in Nominal, Flanged End Style, 150 lb, Stainless Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:246484
UPC:191988020842
MPN:87A20401A
Price:
$461.07 / EA
Prop 65:
DESCRIPTION
Apollo™ 87A20401A, Ball Valve, Series: 87A-200, 3/4 in Nominal, Flanged End Style, 150 lb Pressure Class, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 4.62 in Inlet to Outlet Length, 3.43 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 87A and 88A Series, ASME Class 150 and 300 flanged ball valves are available in stainless steel, carbon steel and specialty alloys in sizes from 1/2 to 12 in (DN 15 to DN 300). They include as standard many features offered only as options on competitive valves.
Apollo™ 87A-204-01A 87A-200 Ball Valve, 3/4 in Nominal, Flanged End Style, 150 lb, Stainless Steel Body, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:246484
MPN:87A20401A
UPC:191988020842
Price:
$461.07 / EA
Prop 65:
DESCRIPTION
Apollo™ 87A20401A, Ball Valve, Series: 87A-200, 3/4 in Nominal, Flanged End Style, 150 lb Pressure Class, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 4.62 in Inlet to Outlet Length, 3.43 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 87A and 88A Series, ASME Class 150 and 300 flanged ball valves are available in stainless steel, carbon steel and specialty alloys in sizes from 1/2 to 12 in (DN 15 to DN 300). They include as standard many features offered only as options on competitive valves.
Specifications
Brand: Apollo™
Weight: 4.6 lbs
Nominal Size: 3/4 in
End Style: Flanged
Pressure Class: 150 lb
Pressure Rating: 150 psig SWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.62 in
Manufacturer Name: Apollo Conbraco
Series: 87A-200
Top to Inlet Center: 3.43 in
Trim Material: 316 Stainless Steel/RPTFE
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | MSS SP-72 | NACE MR0175 (2000)/MR0103 (2003) | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Regular and full port ASME designs
- Anti-static grounded ball and stem
- Locking device
- ISO 5211 mounting pad
- Vacuum service to 29 in Hg (737 mm Hg)
- 300 stainless steel lever handle
- 316 stainless steel stem/RPTFE seat
- PTFE stem seal/RPTFE body seal
