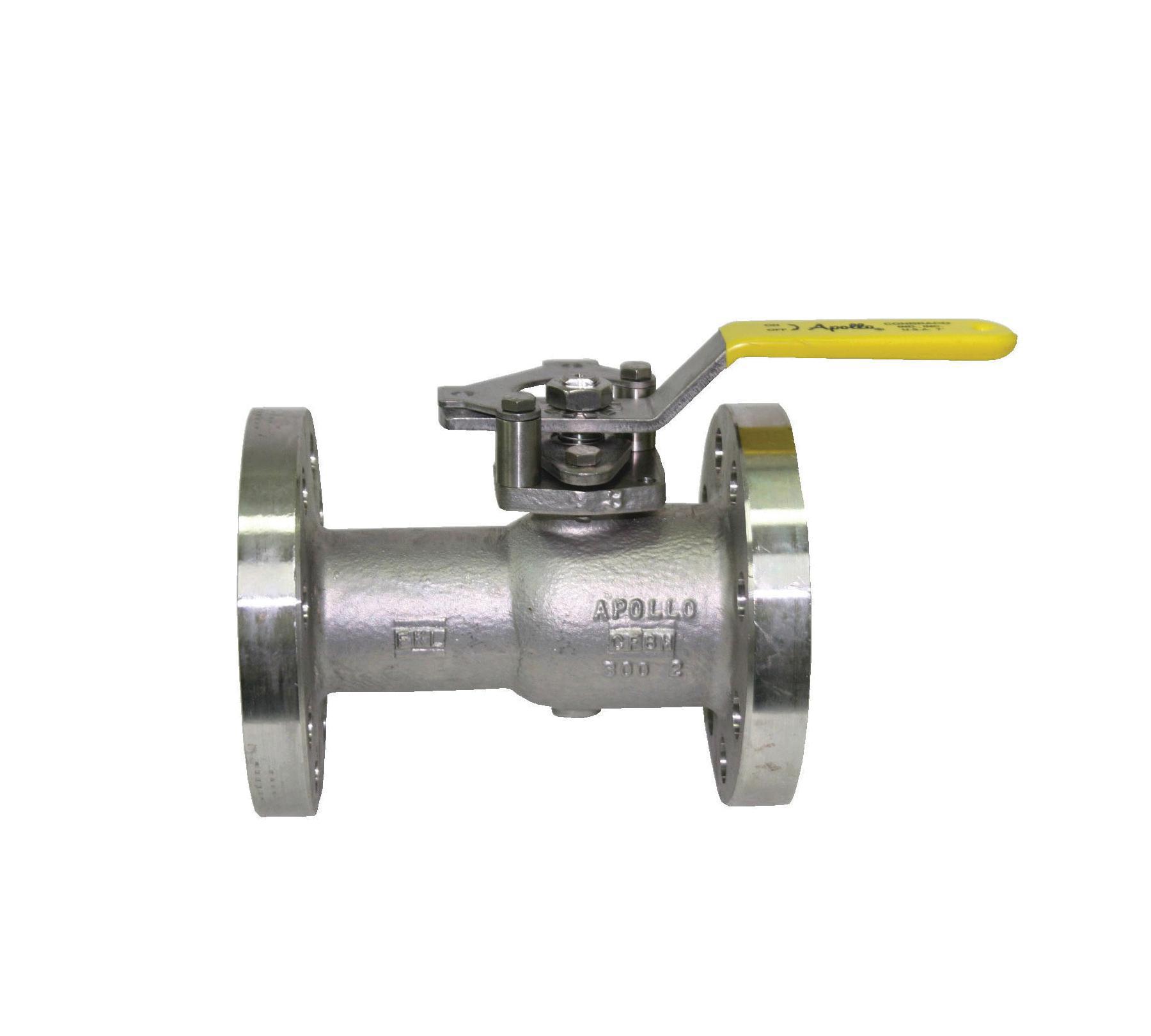

Apollo™ 87A70001 87A-700 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 300 lb, Standard Port, PTFE/RPTFE Softgoods, Domestic
CBPN:246100
UPC:670750907463
MPN:87A-700-01
Price:
$2962.25 / EA
Prop 65:
DESCRIPTION
Apollo™ 87A70001, Ball Valve, Series: 87A-700, 3 in Nominal, Raised Face Flanged End Style, 300 lb Pressure Class, Standard Port, Lever Operated Actuator, Stainless Steel Ball, 11.12 in Inlet to Outlet Length, 6.24 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 87A70001 87A-700 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 300 lb, Standard Port, PTFE/RPTFE Softgoods, Domestic
CBPN:246100
MPN:87A-700-01
UPC:670750907463
Price:
$2962.25 / EA
Prop 65:
DESCRIPTION
Apollo™ 87A70001, Ball Valve, Series: 87A-700, 3 in Nominal, Raised Face Flanged End Style, 300 lb Pressure Class, Standard Port, Lever Operated Actuator, Stainless Steel Ball, 11.12 in Inlet to Outlet Length, 6.24 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 54.5 lbs
Nominal Size: 3 in
End Style: Raised Face Flanged
Pressure Class: 300 lb
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 11.12 in
Manufacturer Name: Apollo Conbraco
Series: 87A-700
Top to Inlet Center: 6.24 in
Trim Material: 316 Stainless Steel/RPTFE
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A351 CF8M Body | ASTM A276 Stem/Ball | CSA ASME B16.33/B16.38 | MSS SP-25/SP-72 | NSF/ANSI 61 | UL Listed | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device
- Chevron style adjustable stem seal
- Slot vented ball for thermal expansion
- Rated up to 150 psig saturated steam
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast boss for bleed/drain port
- Vacuum service to 29 in Hg
