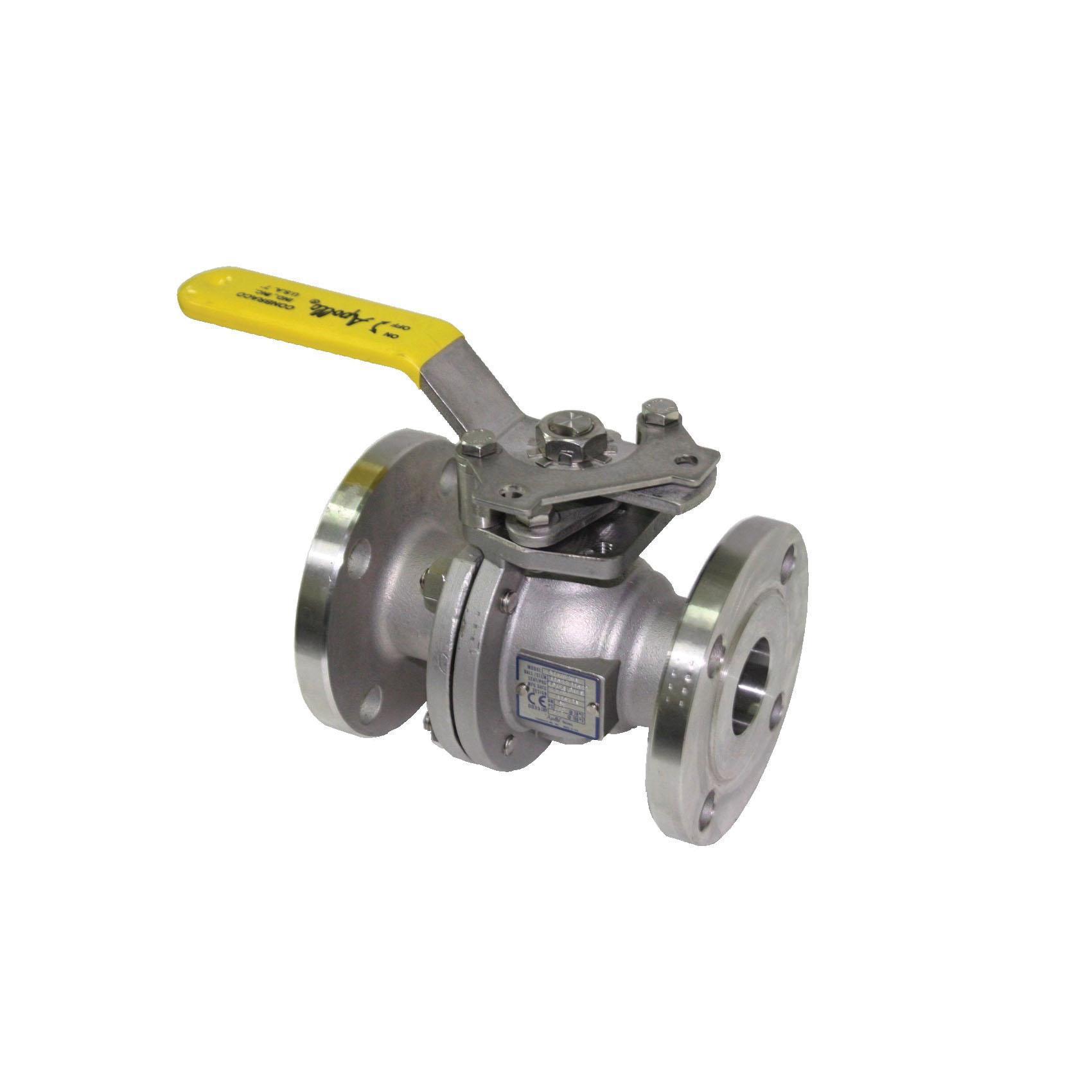

Apollo™ 87A20C01 87A-200 Ball Valve, 6 in Nominal, Flanged End Style, 150 lb, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:64719
UPC:670750925955
MPN:87A-20C-01
Price:
$8970.53 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ 87A20C01, Ball Valve, Series: 87A-200, 6 in Nominal, Flanged End Style, 150 lb Pressure Class, Full Port, Lever Operated Actuator, Stainless Steel Ball, 15-1/2 in Inlet to Outlet Length, 13.73 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 87A20C01 87A-200 Ball Valve, 6 in Nominal, Flanged End Style, 150 lb, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN:64719
MPN:87A-20C-01
UPC:670750925955
Price:
$8970.53 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ 87A20C01, Ball Valve, Series: 87A-200, 6 in Nominal, Flanged End Style, 150 lb Pressure Class, Full Port, Lever Operated Actuator, Stainless Steel Ball, 15-1/2 in Inlet to Outlet Length, 13.73 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 247.5 lbs
Nominal Size: 6 in
End Style: Flanged
Pressure Class: 150 lb
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 15-1/2 in
Manufacturer Name: Apollo Conbraco
Series: 87A-200
Top to Inlet Center: 13.73 in
Trim Material: 316 Stainless Steel/RPTFE
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A351 CF8M Body | ASTM A276 Stem/Ball | CSA ASME B16.33/B16.38 | MSS SP-25/SP-72 | NSF/ANSI 61 | UL Listed | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device
- Chevron style adjustable stem seal
- Slot vented ball for thermal expansion
- Rated up to 150 psig saturated steam
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast boss for bleed/drain port
- Vacuum service to 29 in Hg
