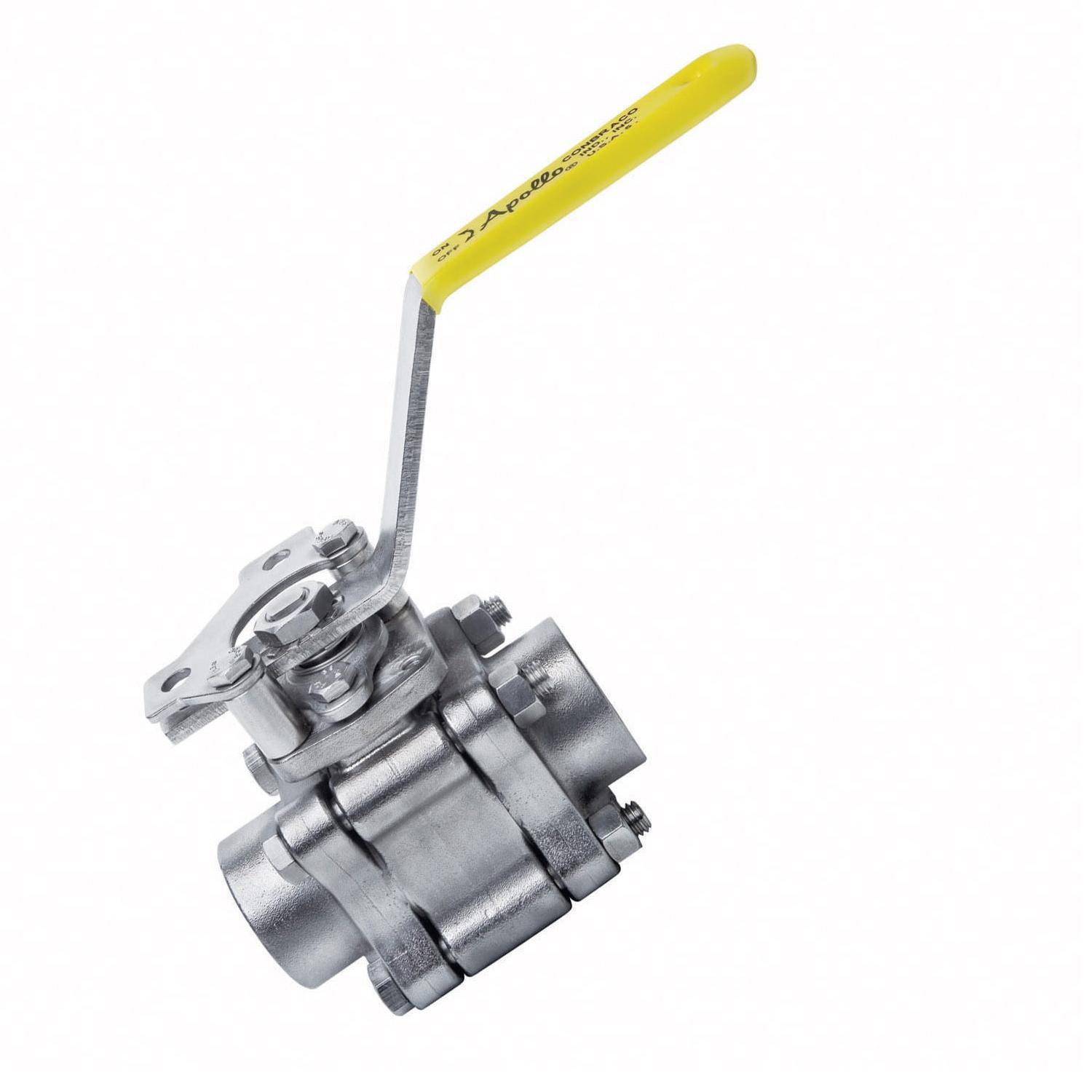

Apollo™ 86C-104-01 86C-100 86C-100 3-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 600 lb, Stainless Steel Body
CBPN:247685
UPC:670750203374
MPN:86C10401
Price:
$1224.42 / EA
Prop 65:
DESCRIPTION
Apollo™ 86C10401, Ball Valve, 3-Piece, Series: 86C-100, 3/4 in Nominal, NPT End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, Nickel Alloy 20 Ball, 3.68 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, Nickel Alloy 20/Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 86C-104-01 86C-100 86C-100 3-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 600 lb, Stainless Steel Body
CBPN:247685
MPN:86C10401
UPC:670750203374
Price:
$1224.42 / EA
Prop 65:
DESCRIPTION
Apollo™ 86C10401, Ball Valve, 3-Piece, Series: 86C-100, 3/4 in Nominal, NPT End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, Nickel Alloy 20 Ball, 3.68 in Inlet to Outlet Length, 3.4 in Top to Inlet Center, Stainless Steel Body, Nickel Alloy 20/Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 4 lbs
Nominal Size: 3/4 in
End Style: NPT
Pressure Class: 600 lb
Pressure Rating: 250 psi
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Handle
Ball Material: Nickel Alloy 20
Inlet to Outlet Length: 3.68 in
Manufacturer Name: Apollo Conbraco
Series: 86C-100
Top to Inlet Center: 3.4 in
Trim Material: Nickel Alloy 20/Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351-CN7M | ASTM UNS N08020/CN7M | ASTM B473 (UNS N08020) | ASME B16.34 | ASME B1.20.1 | API 608 | NACE MR0175 (2000)/MR0103 (2003) | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- Stainless steel trim and nickel alloy 20 stem
